Variant Coding Procedure

■ On-Line type on GDS

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.

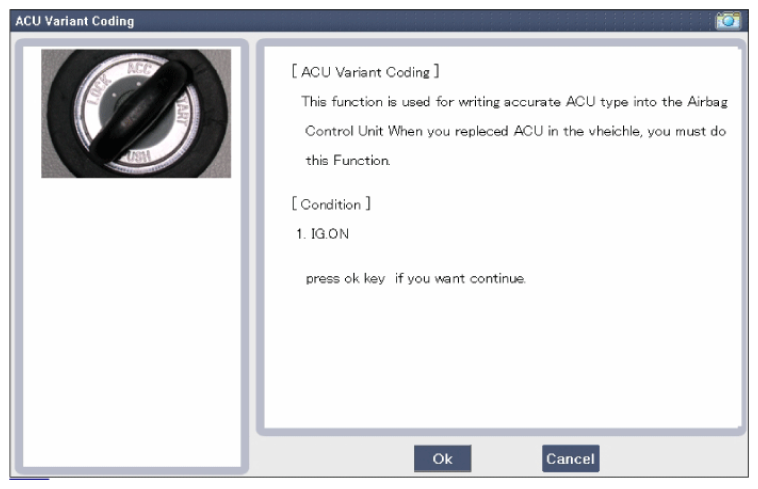

   1. Initial ACU Variant Coding screen
      Fig 1: Display - ACU Variant Coding Screen

      Courtesy of HYUNDAI MOTOR CO.

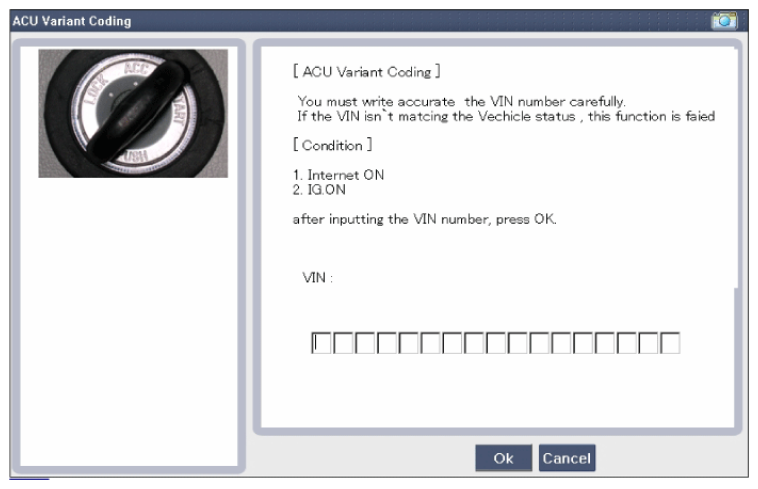

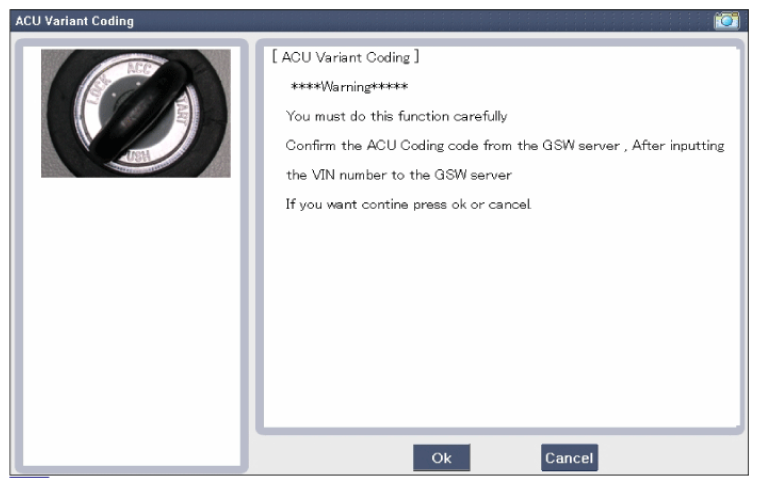

   2. VIN Code entering screen
      Fig 2: Display - VIN Code Entering Screen

      Courtesy of HYUNDAI MOTOR CO.

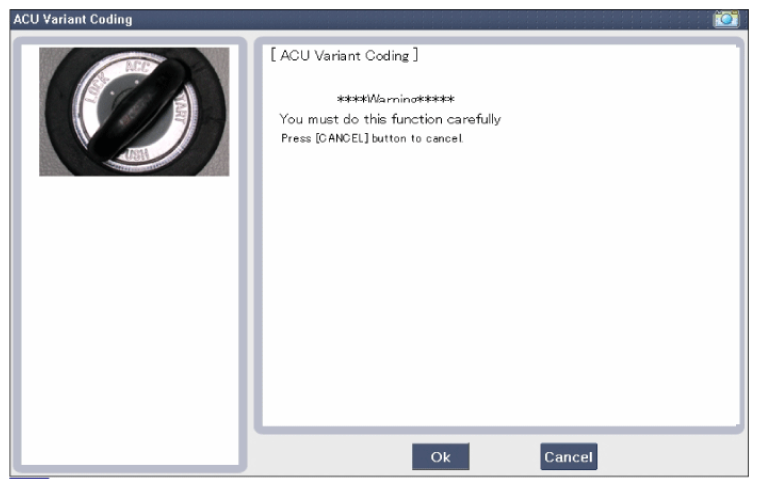

   3. Variant coding's proceeding screen-1
      Fig 3: Display - Variant Coding's Proceeding Screen-1

      Courtesy of HYUNDAI MOTOR CO.

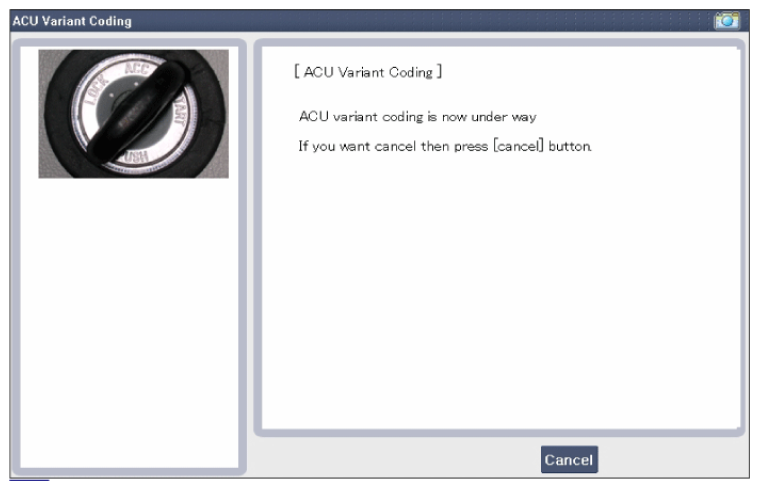

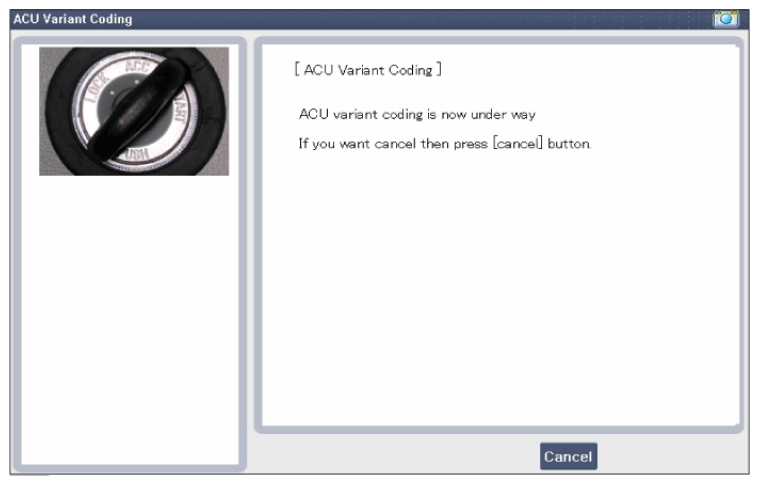

   4. Variant coding's proceeding screen-2
      Fig 4: Display - Variant Coding's Proceeding Screen-2

      Courtesy of HYUNDAI MOTOR CO.

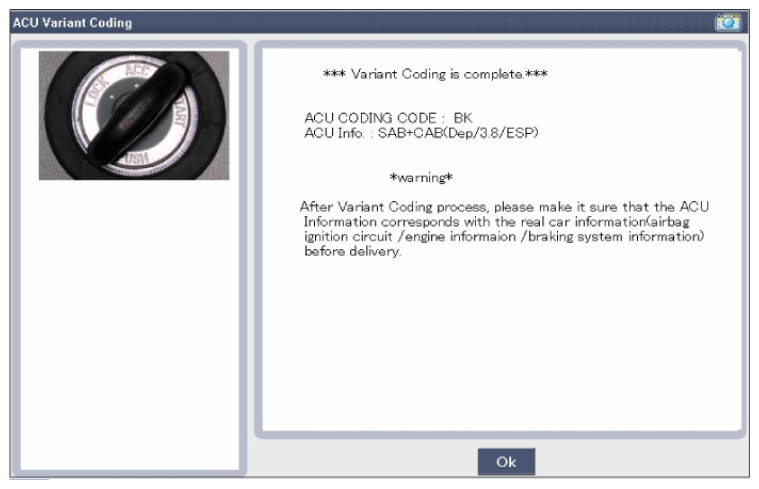

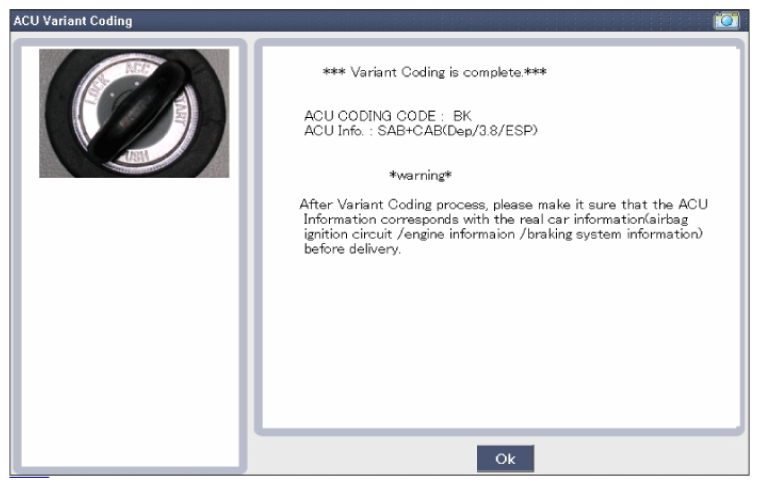

   5. Variant coding is completed
      Fig 5: Display - Variant Coding Completed Screen

      Courtesy of HYUNDAI MOTOR CO.
      NOTE:

      1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.

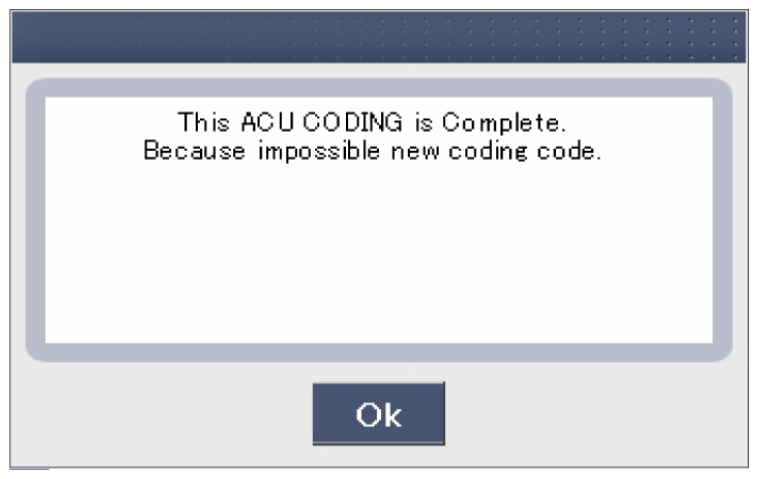

         Fig 6: Display - ACU Coding Completed

         Courtesy of HYUNDAI MOTOR CO.
      2. Screen of communication failure

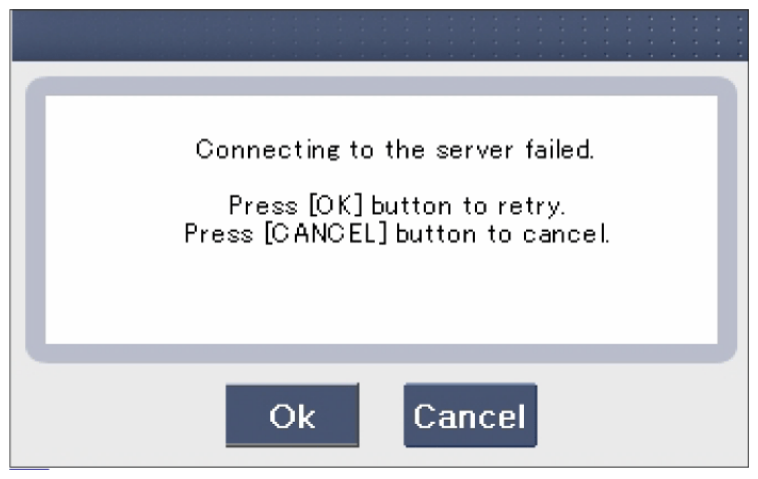

         Fig 7: Display - Screen Of Communication Failure

         Courtesy of HYUNDAI MOTOR CO.

■ Off-line type on GDS (This can be used when not connecting to internet)

1. Initial ACU Variant Coding screen
   Fig 8: Display - Initial ACU Variant Coding

   Courtesy of HYUNDAI MOTOR CO.

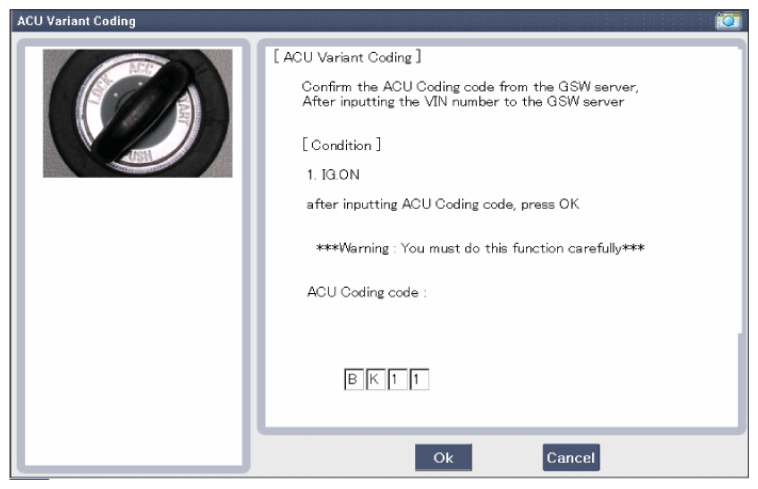

2. ACU Coding Code entering screen
   Fig 9: Display - ACU Coding Code Entering

   Courtesy of HYUNDAI MOTOR CO.
3. Screen of rechecking ACU Coding code's entering
   Fig 10: Display - Screen Of Rechecking ACU Coding Code's Entering

   Courtesy of HYUNDAI MOTOR CO.

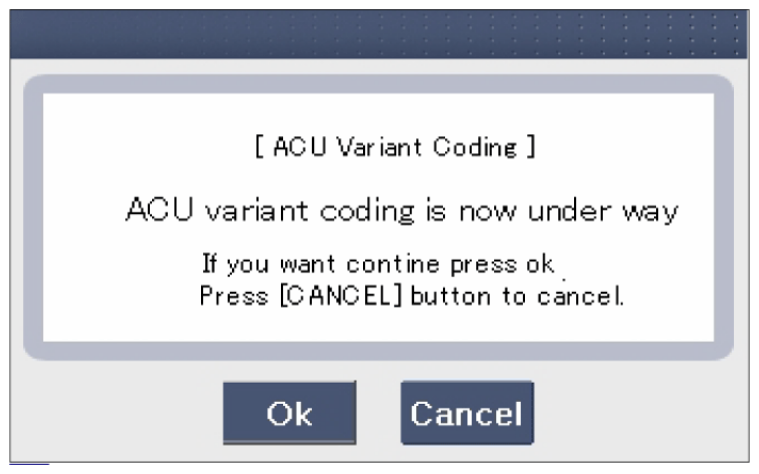

4. Variant coding's proceeding screen-1
   Fig 11: Display - Variant Coding's Proceeding Screen-1

   Courtesy of HYUNDAI MOTOR CO.
5. Variant coding's proceeding screen-2
   Fig 12: Display - Variant Coding's Proceeding Screen-2

   Courtesy of HYUNDAI MOTOR CO.
6. Variant coding is completed
   Fig 13: Variant Coding Completed Screen

   Courtesy of HYUNDAI MOTOR CO.
   NOTE:

   1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.
      Fig 14: ACU Coding Completed

      Courtesy of HYUNDAI MOTOR CO.
