Signal Waveform & Data

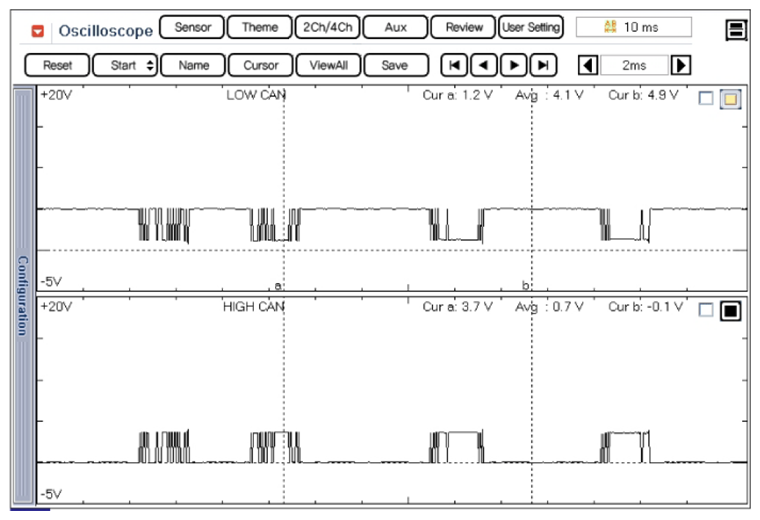

Fig 1: Signal Waveform - CAN Low And High
G06874294Courtesy of HYUNDAI MOTOR CO.

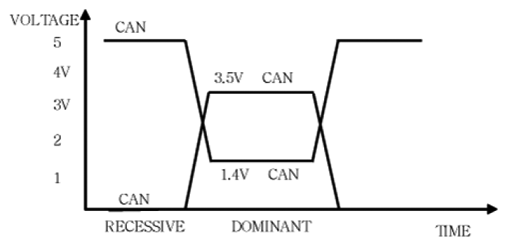

Fig 2: Identifying CAN Bus Voltage Level Graph
G06874295Courtesy of HYUNDAI MOTOR CO.
