Component Inspection

Measure the resistance between signal terminal and ground terminal of the sensor connector (Component side).

Specification

SPECIFICATIONS

Temp.(°C)	Temp.(°F)	Resistance (kΩ)	Temp.(°C)	Temp.(°F)	Resistance (kΩ)
-10	14	8.5 ~ 9.7	20	68	2.3 ~ 2.5
0	32	5.4 ~ 6.1	30	86	1.6 ~ 1.7
10	50	3.5 ~ 3.9	80	176	Approx. 0.3

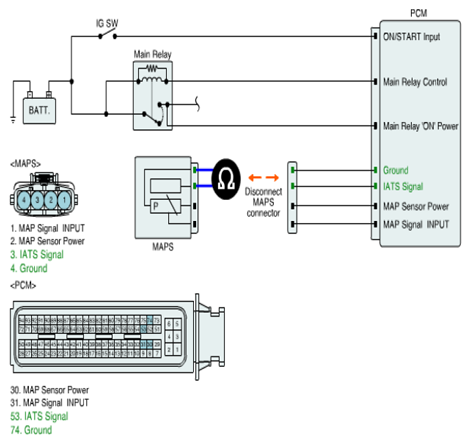

Fig 1: Measuring Resistance Between Signal Terminal And Ground Terminal Of Sensor Connector (Component Side)

Courtesy of HYUNDAI MOTOR CO.

Is resistance within the specification?
YES
- Check for poor connection between PCM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR .
NO
- Check IATS for contamination, deterioration, or damage. Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to VERIFICATION OF VEHICLE REPAIR .
