Ground Circuit Inspection

Check for Open in Ground Circuit
1. IG KEY OFF.
2. Disconnect VCMA harness connector and PCM harness connector.
3. Measure resistance between both ends of ground line.
  Specification: Approx. 0 Ω

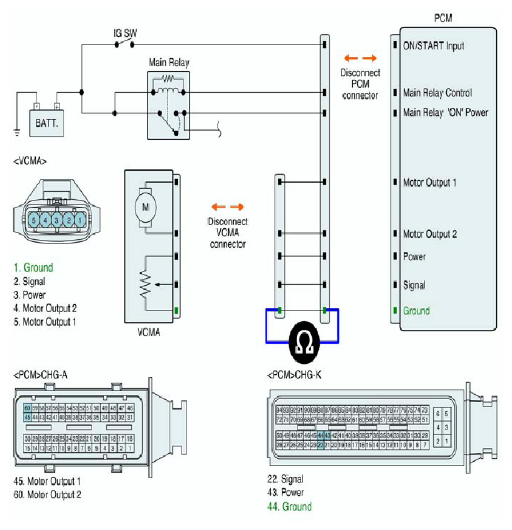

  Fig 1: Measuring Resistance Between Ends Of Ground Line
  Courtesy of HYUNDAI MOTOR CO.
4. Is resistance within specification?
  YES
  - Go to next procedure.
  NO
  - Repair as necessary and go to VERIFICATION OF VEHICLE REPAIR .
