Torque Converter Control Solenoid Valve (T/CON_VFS): Removal

Remove the automatic transaxle assembly. (Refer to REPAIR PROCEDURES .)
Remove the air breeder hose (A).
Remove the valve body cover (B).
Tightening torque:

12.8 ~ 14.7 N.m (1.3 ~ 1.5 kgf.m, 9.4 ~ 10.9 lb-ft)

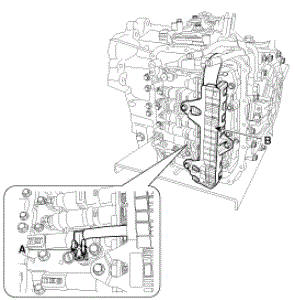

Fig 1: Identifying Air Breeder Hose And Valve Body Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the bolt (3ea) after disconnecting the solenoid valve connector (B) and the oil temperature sensor connector (A).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 2: Identifying Solenoid Valve Connector And Oil Temperature Sensor Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the solenoid valve support bracket (B) and the valve body mounting bolt (A-1ea).
Tightening torque:

9.8 ~ 11.8 N.m (1.0 ~ 1.2 kgf.m, 7.2 ~ 8.7 lb-ft)

Fig 3: Identifying Solenoid Valve Support Bracket And Valve Body Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the torque converter control solenoid valve (A).

Fig 4: Identifying Torque Converter Control Solenoid Valve
Courtesy of HYUNDAI MOTOR CO.
