Diagnostic Circuit Diagram

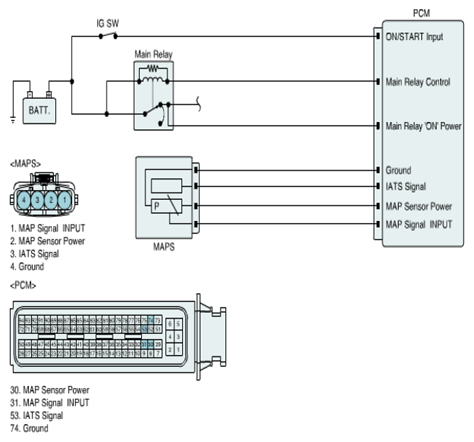

Fig 1: MAPS And IATS Circuit Diagram
Courtesy of HYUNDAI MOTOR CO.
Courtesy of HYUNDAI MOTOR CO.
