Components and Components Location: Components

WARNING: This page is about a different variant/trim than selected.

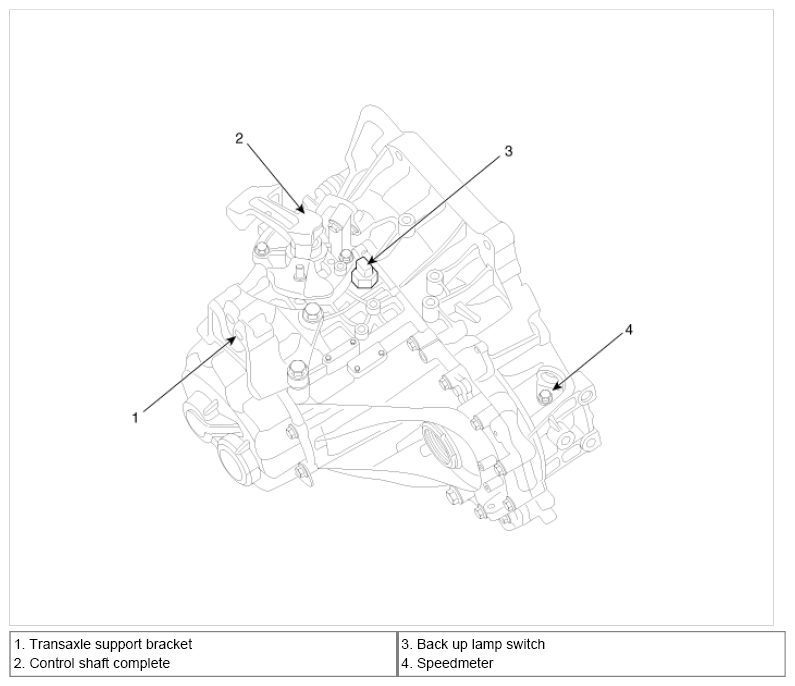

Fig 1: Identifying Transaxle Support Bracket, Control Shaft Complete, Back Up Lamp Switch And Speedmeter
G08807167Courtesy of HYUNDAI MOTOR AMERICA
