LEMON Manuals
: Even more car manuals for everyone: 1960-2025
Home
>>
Hyundai
>>
2012
>>
Veloster L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Control Module, ASMT
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Control Module, ASMT

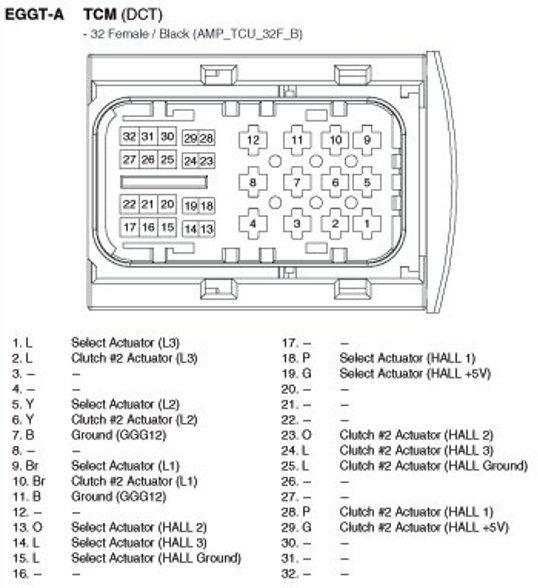

EGGT-A TCM (DCT):

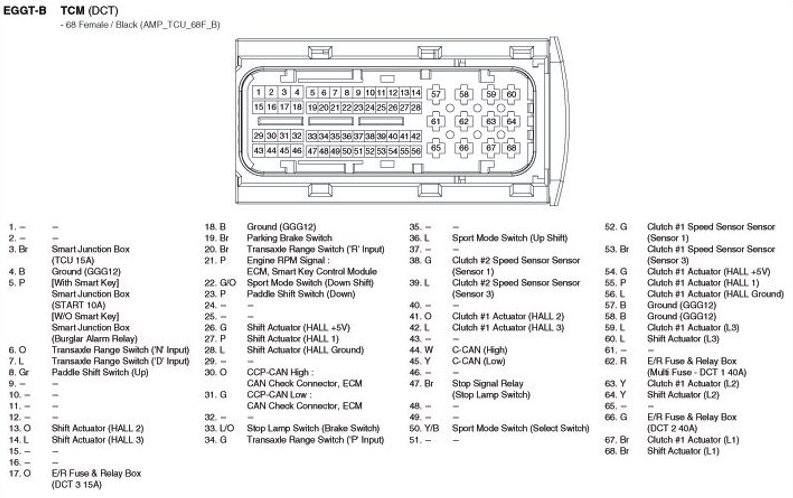

EGGT-B TCM (DCT):
