Repair procedures: Removal: Notes

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel. (Refer to the "CRASH PAD ")
  3. Disconnect the IPM connectors, loosening the nut (2EA) and the bolt (1EA), then remove the IPM.

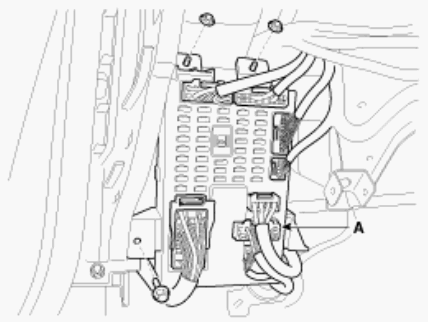

    Fig 1: Identifying IPM Connector
    G08811608Courtesy of HYUNDAI MOTOR AMERICA
  4. The installation is the reverse order of removal.
