AVN (A/V & Navigation) Head Unit Connector

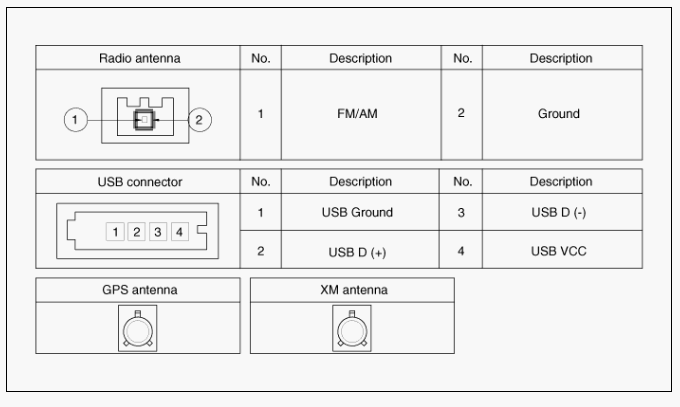

Fig 1: Identifying AVN (A/V & Navigation) Head Unit Connector Terminals End View (1 Of 2)

Courtesy of HYUN

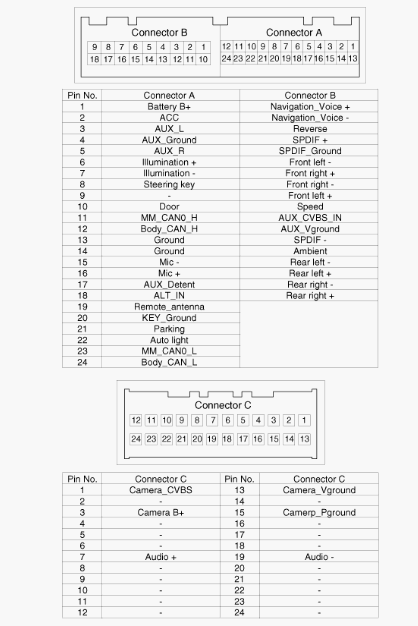

Fig 2: Identifying AVN (A/V & Navigation) Head Unit Connector Terminals End View (2 Of 2)

Courtesy of HYUN

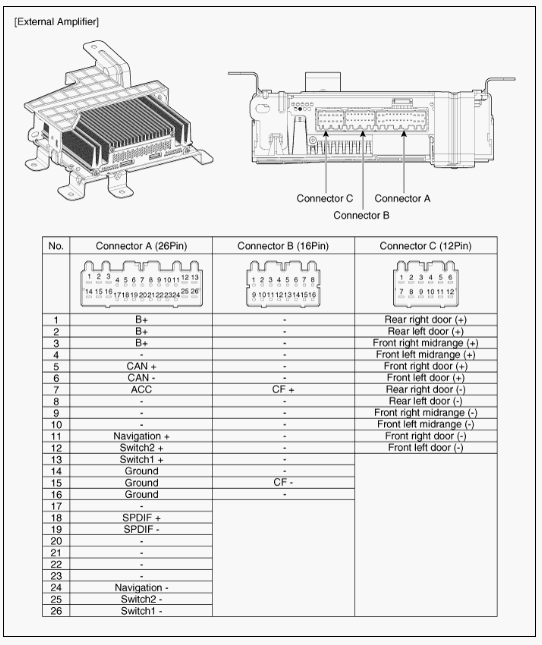

Fig 3: Identifying External Amplifier Connector Terminals End View

Courtesy of HYUN

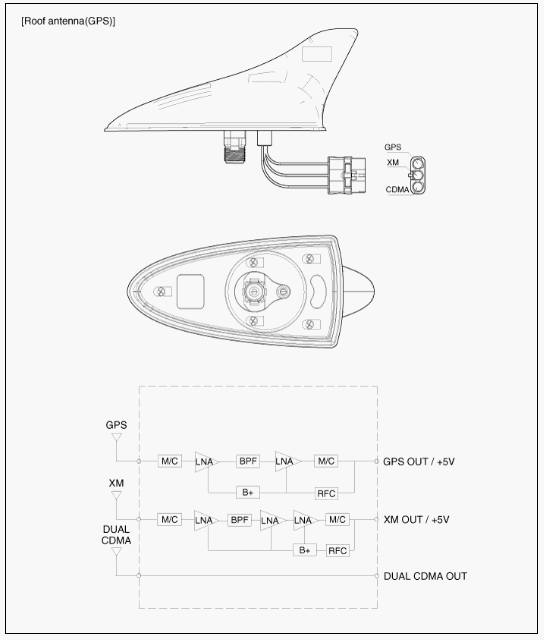

Fig 4: Identifying Roof Antenna Connector Terminals End View (GPS)

Courtesy of HYUN
