Engine Control System Diagnosis (2 Of 2) - Non-Turbo
>>
DTC P2237: O2 Sensor Pumping Current Circuit Open (Bank 1 Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

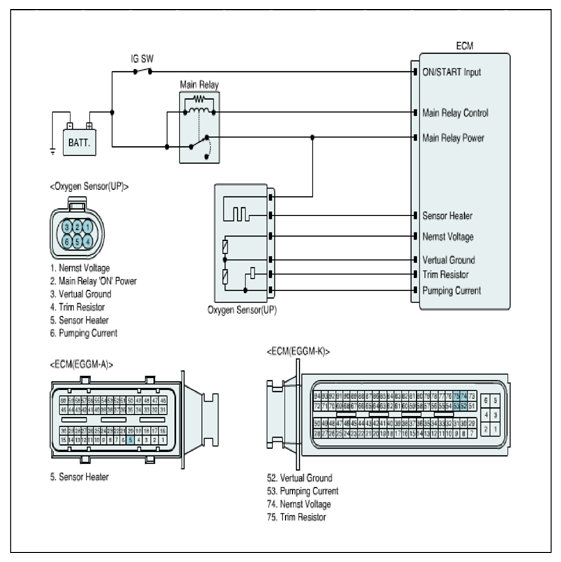

Fig 1: Oxygen Sensor - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
