EPS Control Module Connector End View

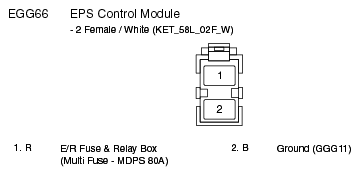

Fig 1: EPS Control Module Connector End View (EGG66)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
