SRS Control Module Connector End View

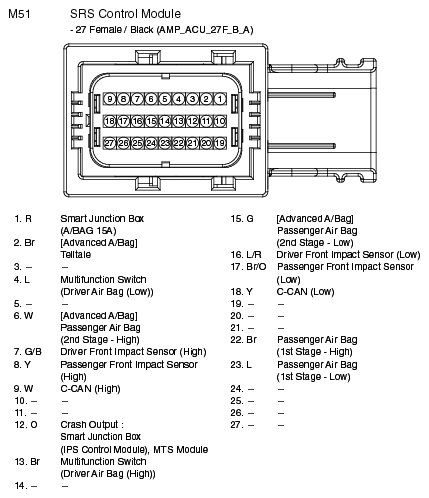

Fig 1: SRS Control Module Connector End View (M51)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
