Circuit Diagram

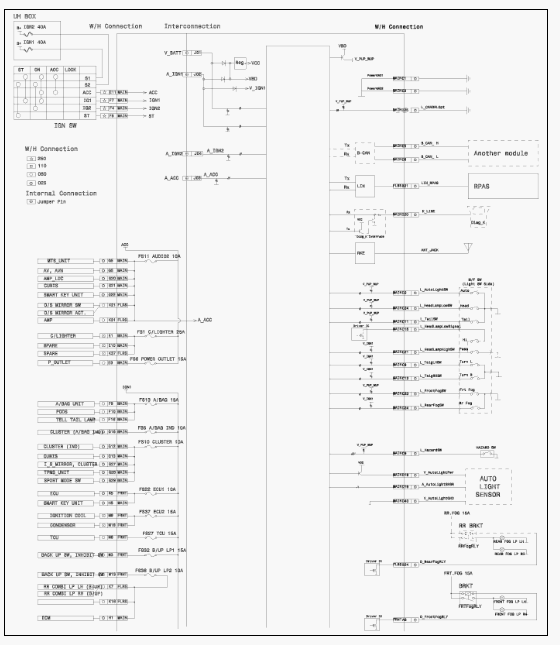

Fig 1: Intelligent Integrated Platform Module - Circuit Diagram (1 Of 4)
G08811602Courtesy of HYUNDAI MOTOR AMERICA

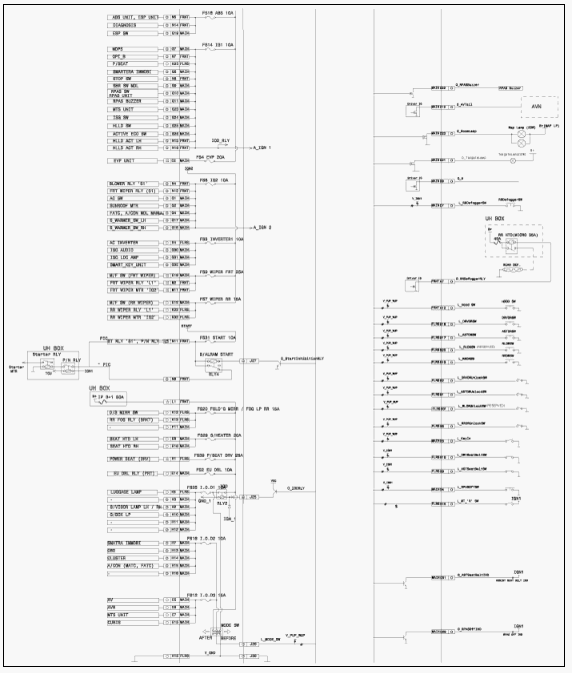

Fig 2: Intelligent Integrated Platform Module - Circuit Diagram (2 Of 4)
G08811603Courtesy of HYUNDAI MOTOR AMERICA

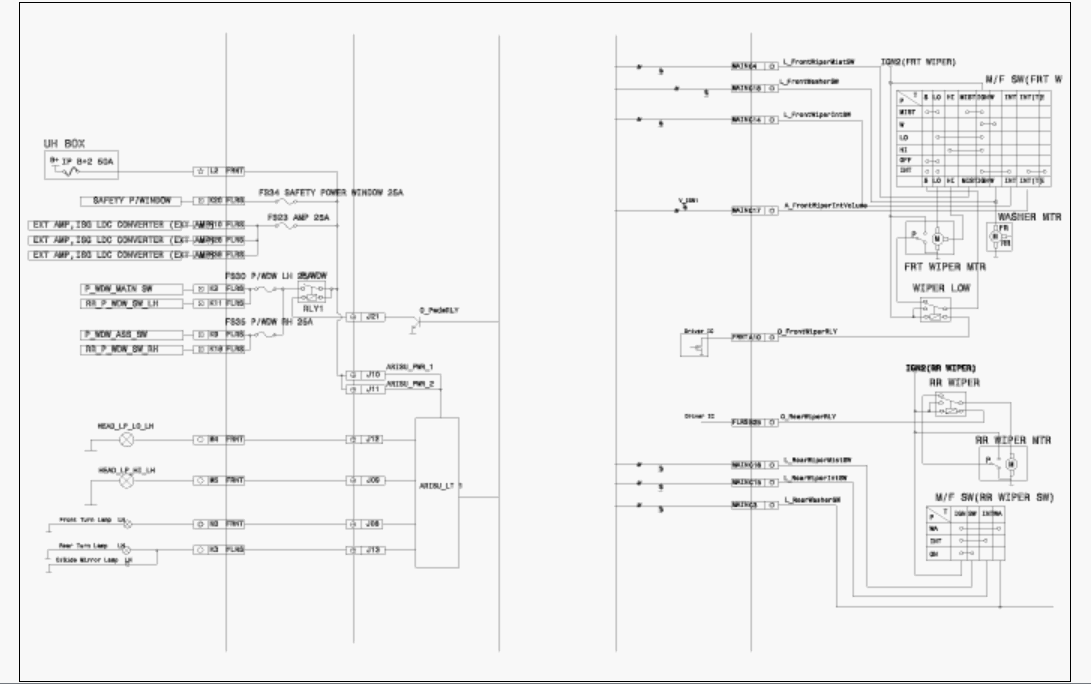

Fig 3: Intelligent Integrated Platform Module - Circuit Diagram (3 Of 4)
G08811604Courtesy of HYUNDAI MOTOR AMERICA

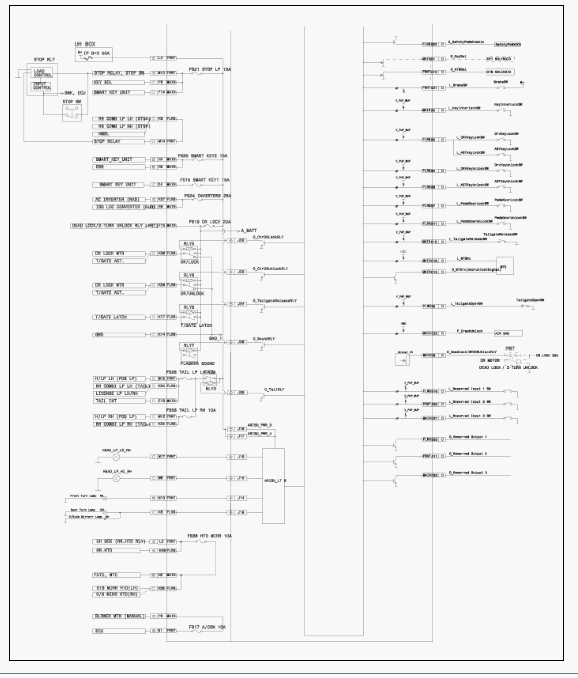

Fig 4: Intelligent Integrated Platform Module - Circuit Diagram (4 Of 4)
G08811605Courtesy of HYUNDAI MOTOR AMERICA
