Front Hub/Knuckle: Disassembly: Notes

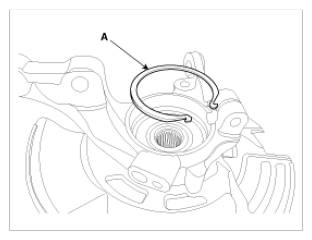

Remove the snap ring (A).

Fig 1: Identifying Snap Ring
Courtesy of HYUNDAI MOTOR AMERICA

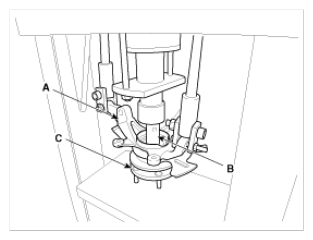

Remove the hub assembly from the knuckle assembly.
1. Install the front knuckle assembly (A) on press.
2. Lay a suitable adapter (B) upon the hub assembly shaft.
3. Remove the hub assembly (C) from the knuckle assembly (A) by using press.

  Fig 2: Removing Hub Assembly From Knuckle Assembly Using Adapter
  Courtesy of HYUNDAI MOTOR AMERICA

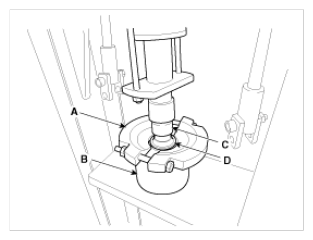

Remove the hub bearing inner race from the hub assembly.
1. Install a suitable tool (A) for removing the hub bearing inner race on the hub assembly.
2. Lay the hub assembly and tool (A) upon a suitable adapter (B).
3. Lay a suitable adapter (C) upon the hub assembly shaft.
4. Remove the hub bearing inner race (D) from the hub assembly by using press.

  Fig 3: Removing Hub Bearing Inner Race From Hub Assembly Using Adapter
  Courtesy of HYUNDAI MOTOR AMERICA

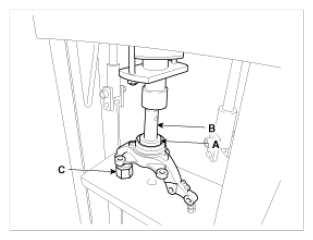

Remove the hub bearing outer race from the knuckle assembly.
1. Lay the hub assembly (A) upon a suitable adapter (B).
2. Lay a suitable adapter (C) upon the hub bearing outer race.
3. Remove the hub bearing outer race from the knuckle assembly by using press.

  Fig 4: Removing Hub Bearing Outer Race From Knuckle Assembly Using Adapter
  Courtesy of HYUNDAI MOTOR AMERICA
Replace hub bearing with a new one.
