Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the lower crash pad.

    (Refer to the "CRASH PAD ")

  3. Disconnect the stop lamp switch connector (A).

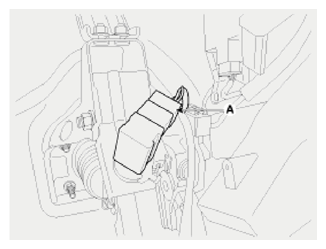

    Fig 1: Identifying Stop Lamp Switch Connector
    G09133859Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the stop lamp switch.
