Front Brake Disc Runout Check
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

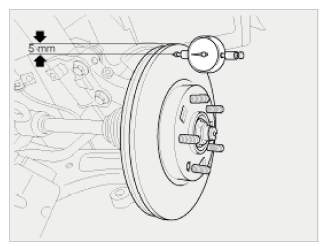

- Place a dial gauge about 5mm (0.2 in.) from the outer circumference of the brake disc, and measure the runout of the disc.
Brake disc runout
Limit: 0.025 mm (0.001 in.) or less (new one)
- If the runout of the brake disc exceeds the limit specification, replace the disc, and then measure the runout again.
- If the runout does not exceed the limit specification, install the brake disc after turning it 180° and then check the runout of the brake disc again.
- If the runout cannot be corrected by changing the position of the brake disc, replace the brake disc.
