Front Brake Pads

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the guide rod bolt (B) and pivot the caliper (A) up out of the way.
Tightening torque:

21.6 ~ 31.4 N.m (2.2 ~ 3.2 kgf.m, 15.9 ~ 23.1 lb-ft)

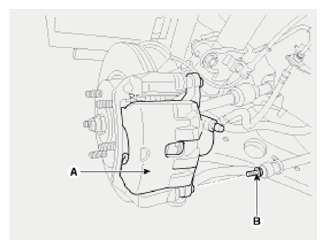

Fig 1: Identifying Guide Rod Bolt And Caliper
Courtesy of HYUNDAI MOTOR AMERICA
Replace pad shim (D), pad retainers (C) and brake pads (B) in the caliper carrier (A).

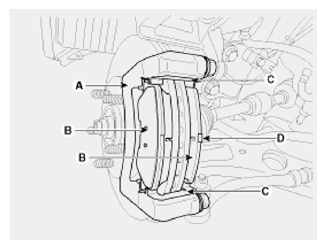

Fig 2: Identifying Pad Shim, Pad Retainers, Brake Pads And Caliper Carrier
Courtesy of HYUNDAI MOTOR AMERICA
