Repair Procedures: Removal

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

Remove the floor console assembly.
(Refer to "CONSOLE ")
Remove the multimedia jack assembly (A).

Fig 1: Identifying Multimedia Jack Assembly
Courtesy of HYUNDAI MOTOR AMERICA

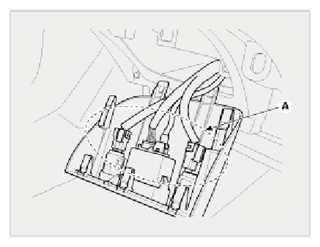

Disconnect the multimedia jack connector (A).

Fig 2: Identifying Multimedia Jack Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the multimedia jack (B) after releasing the fixed hooks (A).

Fig 3: Removing Multimedia Jack
Courtesy of HYUNDAI MOTOR AMERICA
