Disassembly and Reassembly
WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.

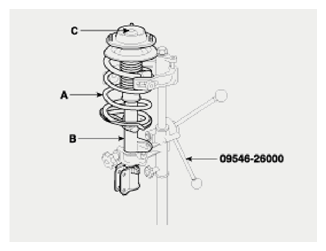

- Compress the coil spring (A) using SST (09546-26000). Do not compress the spring more than necessary.
- Loosen the lock nut (C) from the strut assembly (B).
Tightening torque:
58.8 ~ 68.6 N.m (6.0 ~ 7.0 kgf.m, 43.4 ~ 50.6 lb-ft)
- Disassemble the components of front strut assembly in sequence.
(Refer to FRONT STRUT ASSEMBLY components)
- Reassembly is the reverse of disassembly.
