Repair Procedures: Replacement

WARNING: This page is about a different car, the 2014 Hyundai Veloster and 2013 Hyundai Veloster. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front wheel & tire.

    Tightening torque:

    88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)

    Fig 1: Identifying Front Wheel & Tire
    G09135075Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION: Be careful not to damage to the hub bolts when removing the front wheel & tire.
  2. Disconnect the stabilizer link (B) with the front strut assembly (A) after loosening the nut.

    Tightening torque:

    98.1 ~ 117.7 N.m (10.0 ~ 12.0 kgf.m, 72.3 ~ 86.8 lb-ft)

    Fig 2: Identifying Front Strut Assembly And Stabilizer Link
    G09135076Courtesy of HYUNDAI MOTOR AMERICA
  3. Loosen the nut and then remove the tie-rod end (A) with the front axle (B).

    Tightening torque:

    23.5 ~ 33.3 N.m (2.5 ~ 3.4 kgf.m, 19.4 ~ 24.6 lb-ft)

    Fig 3: Identifying Tie-Rod End And Nut
    G09135077Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the nut and then remove the lower arm (A).

    Tightening torque:

    78.5 ~ 88.3 N.m (8.0 ~ 9.0 kgf.m, 57.9 ~ 65.1 lb-ft)

    Fig 4: Identifying Lower Arm And Nut
    G09135078Courtesy of HYUNDAI MOTOR AMERICA
  5. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:

    32.4 ~ 37.3 N.m (3.3 ~ 3.8 kgf.m, 23.9 ~ 27.5 lb-ft)

    Fig 5: Identifying Universal Joint Assembly And Bolt
    G09135079Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable when you handle the steering wheel.
    • Must be replaced with new bolts when assembling. (SEAL-LOCK has been processed)
  6. Remove the rubber hanger (A).
    Fig 6: Identifying Rubber Hanger
    G09135080Courtesy of HYUNDAI MOTOR AMERICA
  7. Loosen the roll rod (A) mounting bolts and nuts.

    Tightening torque:

    53.9 ~ 63.7N.m (5.5 ~ 6.5kgf.m, 39.8 ~ 47.0lb-ft)

    Fig 7: Identifying Roll Rod Mounting Bolts And Nuts
    G09135081Courtesy of HYUNDAI MOTOR AMERICA
  8. Loosen the bolts & nuts and then remove the front sub frame (A).

    Tightening torque:

    Sub frame mounting bolt & nut

    156.9 ~ 176.5 N.m (16.0 ~ 18.0 kgf.m, 115.7 ~ 130.2 lb-ft)

    Sub frame stay mounting bolt

    44.1 ~ 53.9 N.m (4.5 ~ 5.5 kgf.m, 32.5 ~ 39.8 lb-ft)

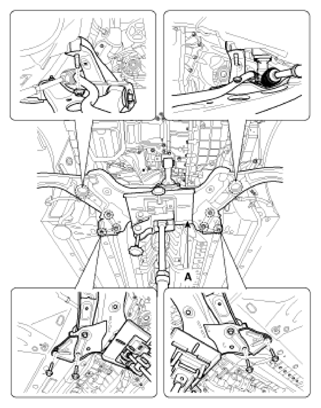

    Fig 8: Identifying Front Sub Frame Bolts & Nuts
    G09135082Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the lower arm.

    (Refer to Front Lower Arm  SS group - "Lower Arm")

  10. Remove the stabilizer bar.

    (Refer to SS group - "STABILIZER BAR ")

  11. Remove the steering gear box.

    (Refer to "STEERING GEAR BOX ")

  12. Installation is the reverse of removal.
  13. Check the wheel alignment.

    (Refer to TIRES/WHEELS/WHEEL ALIGNMENT SS group - "Tires/Wheels")
