Repair Procedures: Installation

NOTE: When replacing the manual transaxle or clutch housing (A), replace with the wiring bracket (B).

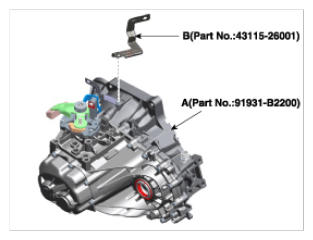

Fig 1: Identifying Manual Transaxle Or Clutch Housing And Wiring Bracket
G08807184Courtesy of HYUNDAI MOTOR AMERICA
  1. Installation is the reverse of removal.
    CAUTION:
    • Adding Manual transaxle fluid.

    (Refer to "MANUAL TRANSAXLE SYSTEM " in this group)
