IMS (Integrated Memory System)





Inspection

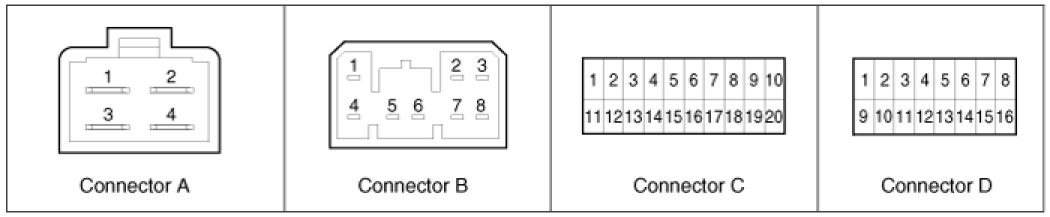

IMS Connectors

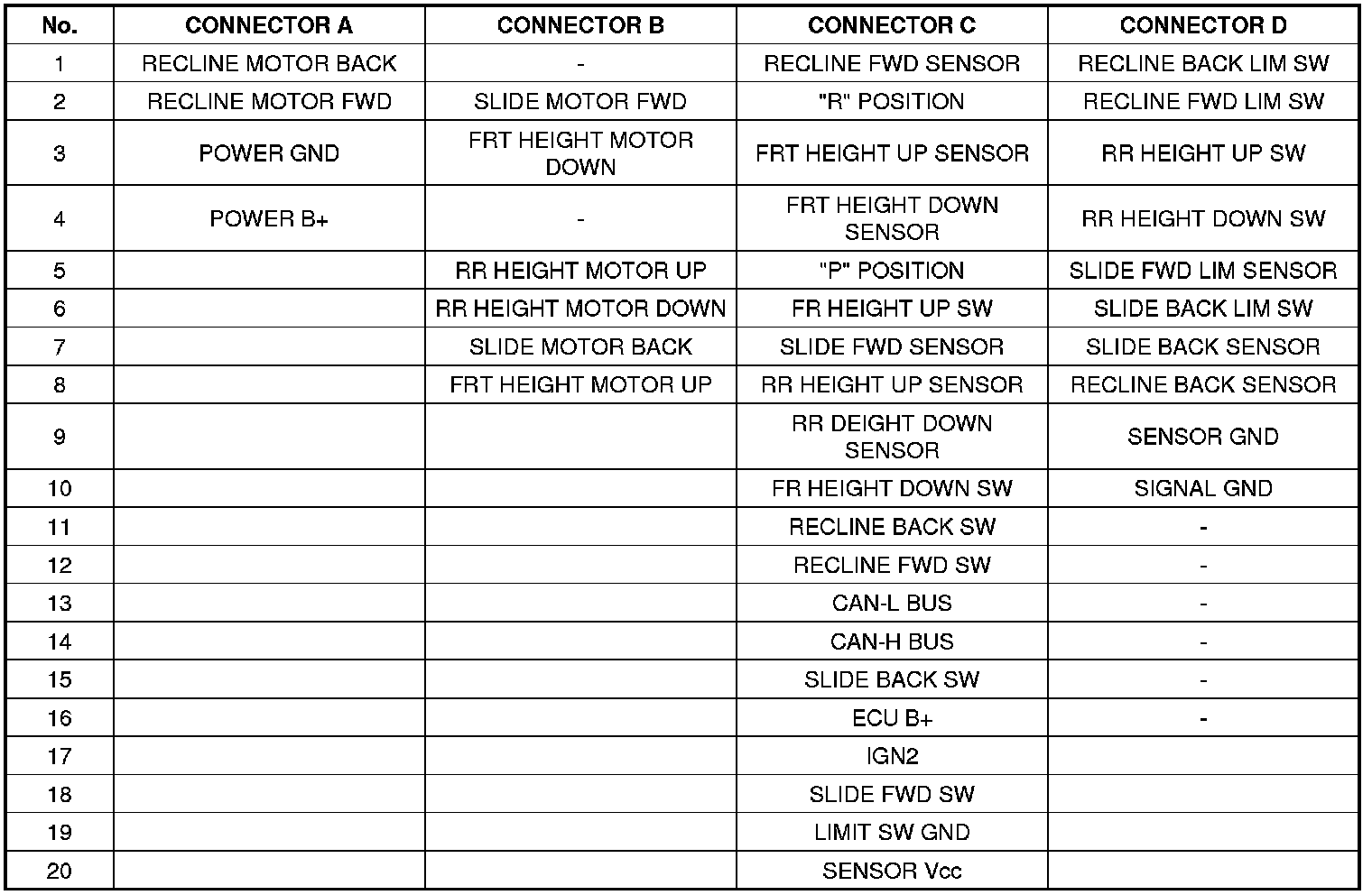

Connector Pin Name






IMS Input/Output Specification

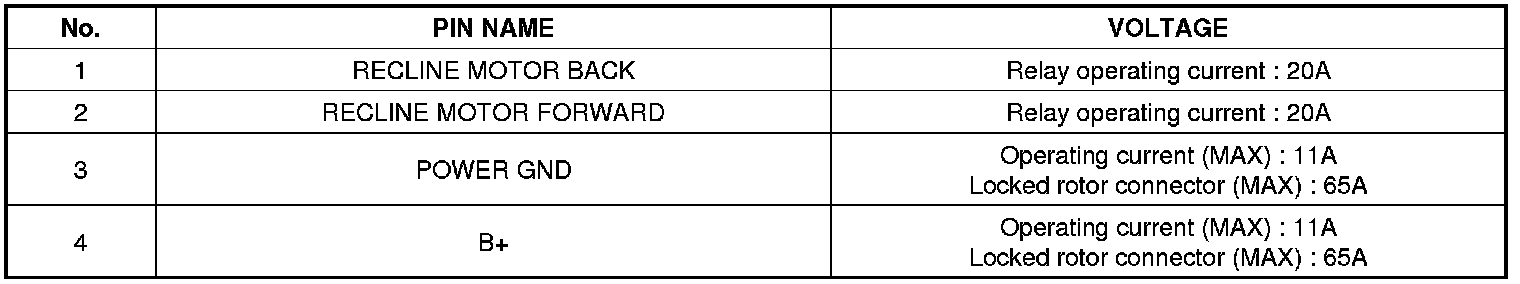

Connector A





Connector B

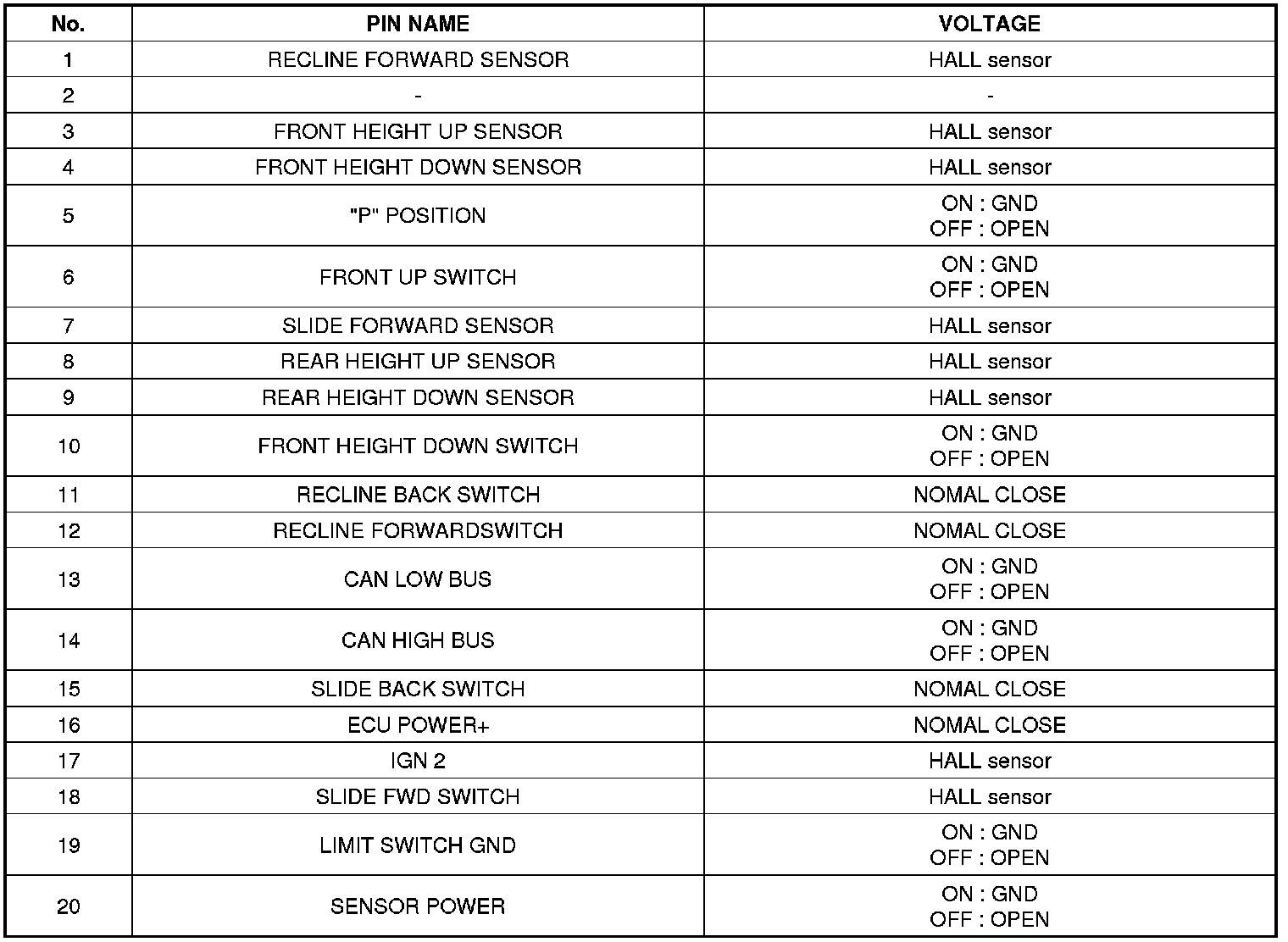

Connector C

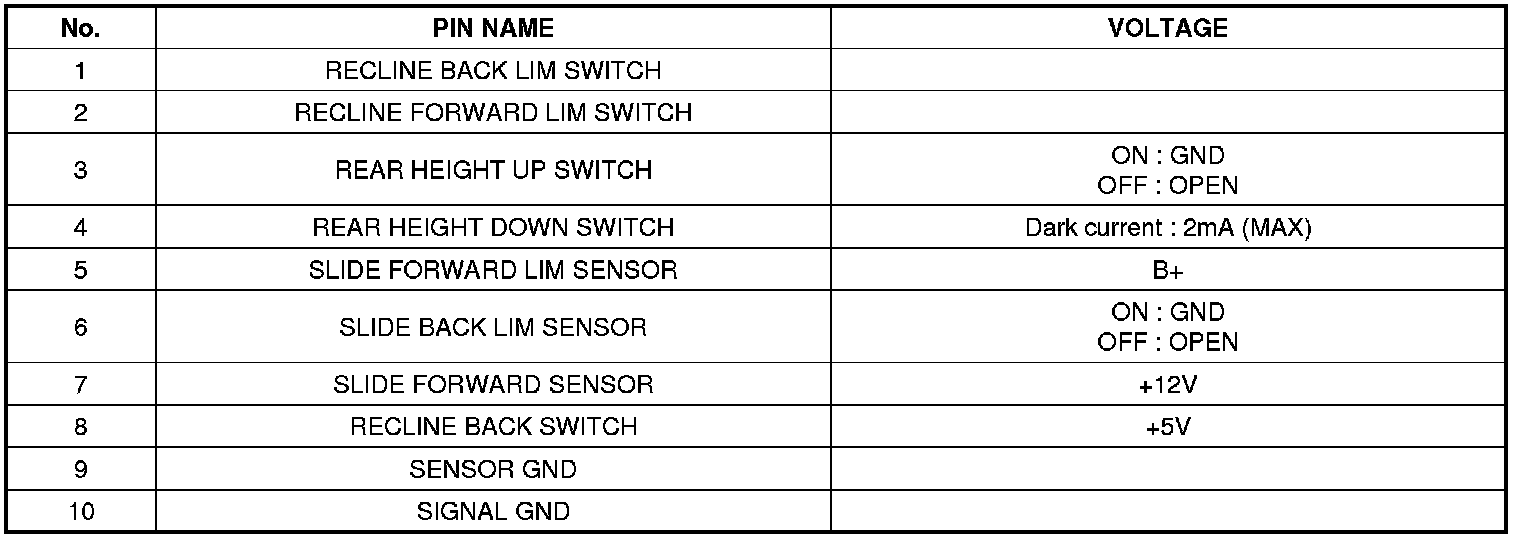

Connector D
