IMS Power Seat Control

Inspection

1. Remove the seat control switch.

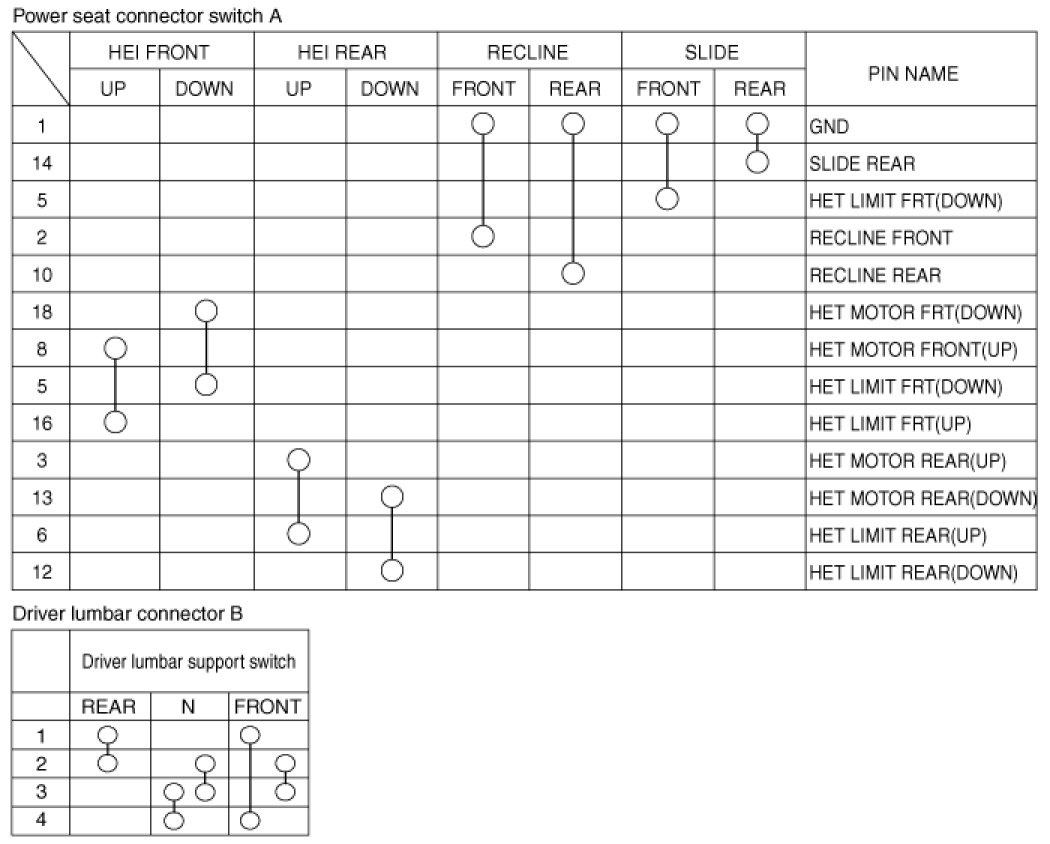

2. With the power seat control switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat control switch.






Removal

1. Disconnect the negative (-) battery terminal.
2. Remove the seat front cover.

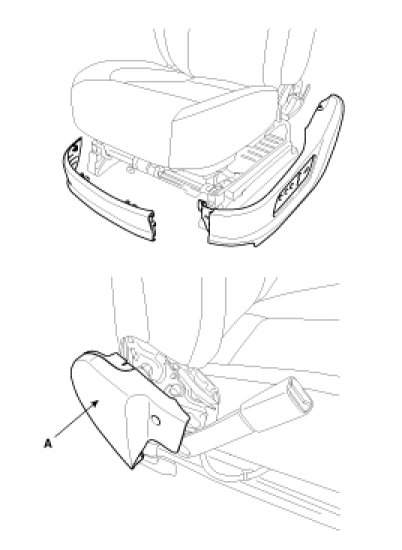

3. After loosening the mounting screws and clip, then remove the recliner cover (A).

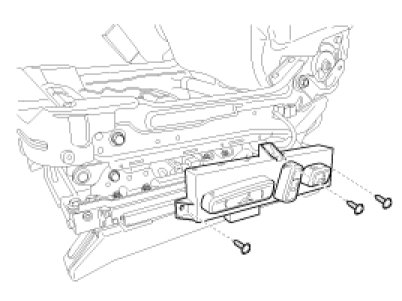

4. Loosen the power seat control switch screws (3EA), then remove the connectors (2EA).










Installation

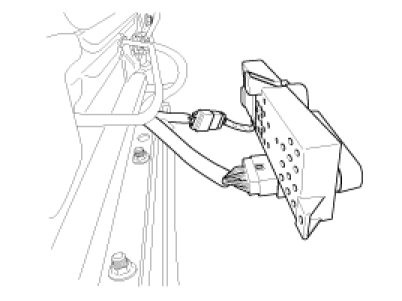

1. Connect the connectors and reassemble the power seat control switch.
2. Reassemble the recliner cover and seat front cover.
