Components and Components Location (F21): Components

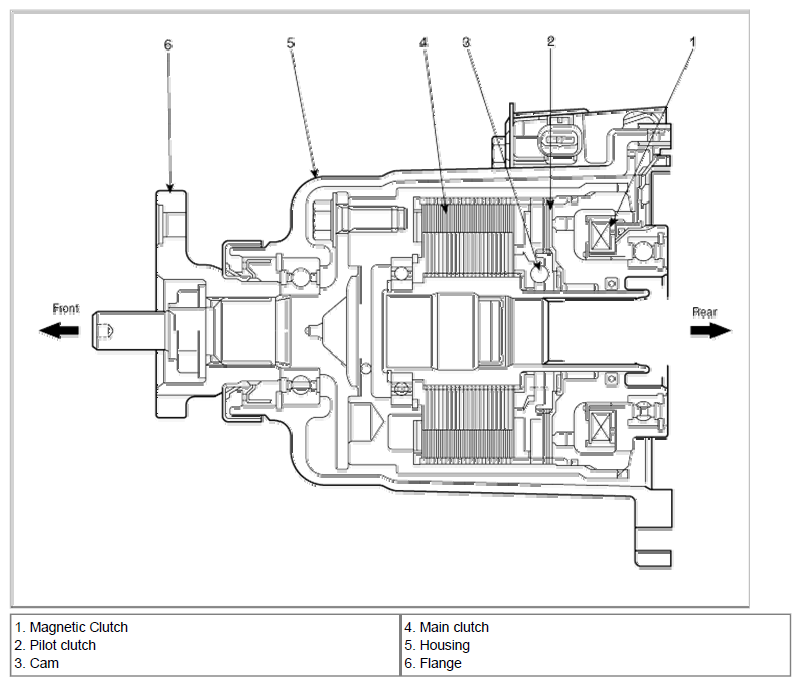

Fig 1: Identifying Coupling Assembly Components

G06861581

Courtesy of HYUNDAI MOTOR CO.
