Repair procedures (F21): Removal

  1. Drain the oil by removing the overflow plug and the O-ring using a torx wrench (T40), and the drain plug (A) and the gasket by using a hexagon wrench (17mm).

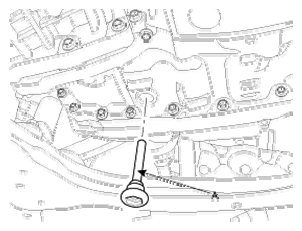

    Fig 1: Identifying Drain Plug
    G06857088Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the oil cooler hoses from the tubes.
  3. Remove the 2 bolts to remove the oil cooler tubes (A) and the O-rings.

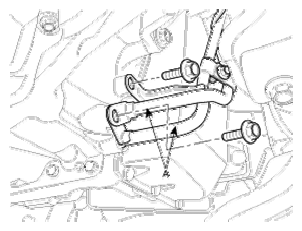

    Fig 2: Identifying Oil Cooler Tubes
    G06857089Courtesy of HYUNDAI MOTOR CO.
  4. Remove the transaxle side cover and the valve body assembly. (Refer to REMOVAL )
    CAUTION: Be careful not to drop the valve body assembly.
  5. Remove the input speed sensor (A).
    Fig 3: Identifying Input Speed Sensor
    G06857090Courtesy of HYUNDAI MOTOR CO.
