Signal Waveform & Data

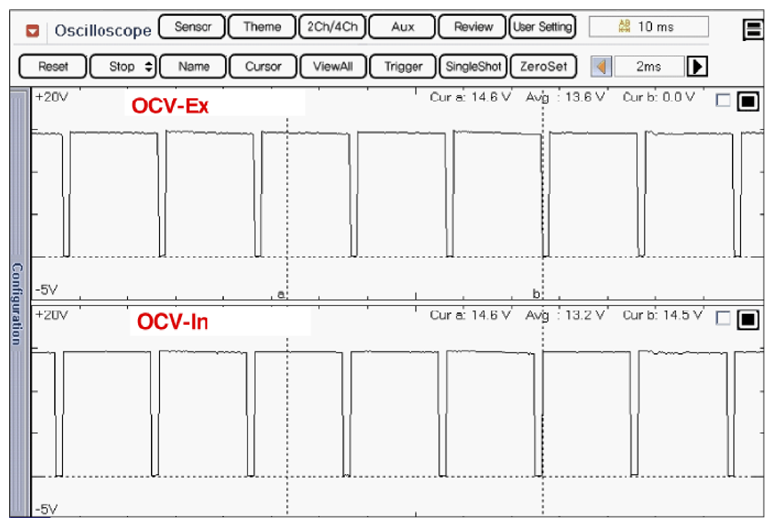

Fig 1: Display - Normal Waveform Of OCV At Idle
G08801982Courtesy of HYUNDAI MOTOR AMERICA

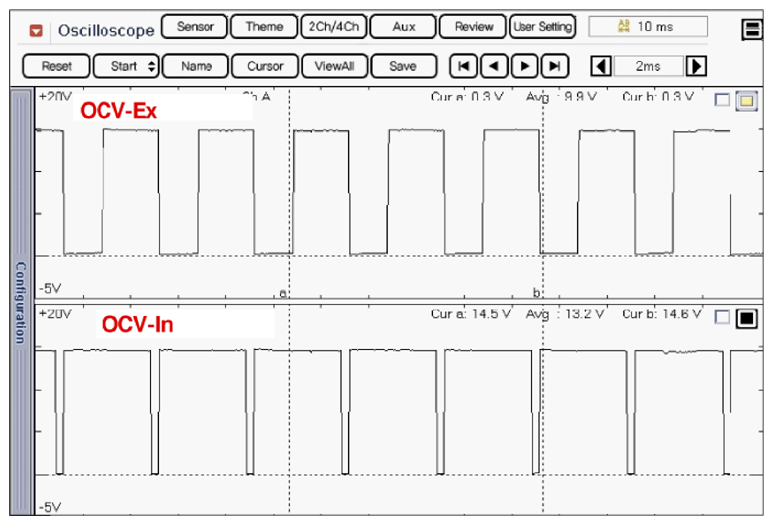

Fig 2: Display - Normal Waveform Of OCV At Acceleration
G08801983Courtesy of HYUNDAI MOTOR AMERICA
