Special Service Tools

Tool (Number and name) Illustration Use
09200-38001, 3N000 (Beam)
09200-2S100 (Adapter)
09200-2S200 (Supporter)
Engine support assembly
G08804619
 Removal and installation of the transaxle.
Use assembling 09200-2S100
(Adapter) and 09200-2S200
(Supporter) on 09200-38001, 3N000 (Beam).
09200-3N000
Engine support fixture (Beam)
G08804620
 Removal and installation of the transaxle.
Use this adapter (SST No.: 09200-2S100) with the supporter (SST No.: 09200-2S200).
*Permit operating with 09200-38001.
09200-2S100
Engine support fixture (Adapter)
G08804621
 Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/09200-3N000) with the supporter (SST No.: 09200-2S200).
09200-2S200
Engine support fixture (Supporter)
G08804622
 Removal and installation of the transaxle.
Use this beam (SST No.: 09200-38001/09200-3N000) with the adapter (SST No.: 09200-2S100).

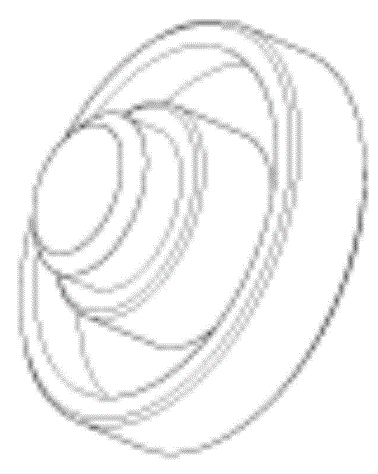

09452-26100
Oil seal installer
G08804623
 Installation of transaxle case oil seal. [Using with handle (SST No.: 09231-H1100)]
09231-H1100
Bar
G08804624
 Installation of transaxle case oil seal. [Using with oil seal installer (SST No.: 09452-26100)]
