Connecting Rod, Engine

Connecting Rod

Lower bearing and cap, and tighten the bolts. Do not reuse the bolts.

Tightening torque : 17.7 - 21.6N.m (1.8 - 2.2kgf.m, 13.0 - 15.9lb-ft) + 88 - 92°

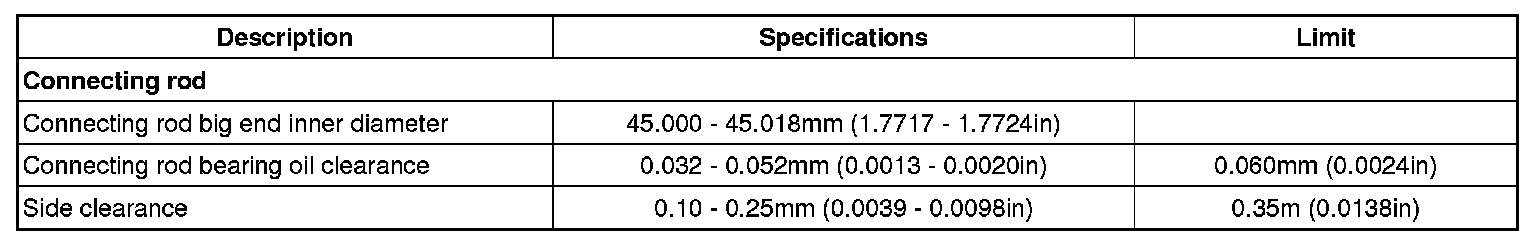

Side Clearence & Diameter
