Diagnostic Circuit Diagram

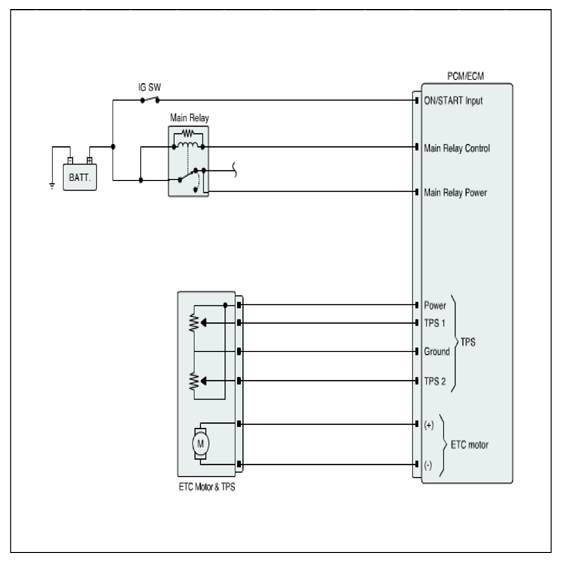

Fig 1: ETC Motor And TPS - Circuit Diagram
G08802281Courtesy of HYUNDAI MOTOR AMERICA

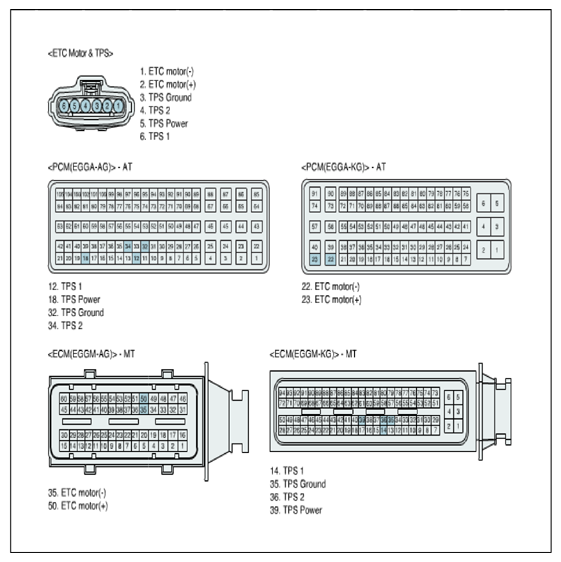

Fig 2: Identifying ETC Motor, TPS, PCM And ECM Connector Terminals
G08802282Courtesy of HYUNDAI MOTOR AMERICA
