Description and Operation: Description

line pressure control solenoid valve is attached to the valve body. This variable force solenoid valve directly controls the hydraulic pressure inside the line pressure.

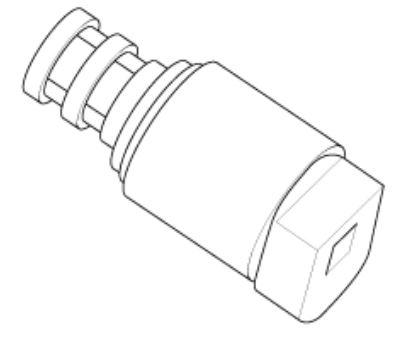

Fig 1: Identifying Line Pressure Control Solenoid Valve
G08804721Courtesy of HYUNDAI MOTOR AMERICA
