Smart Key Control Module Connector End View (M13-B)

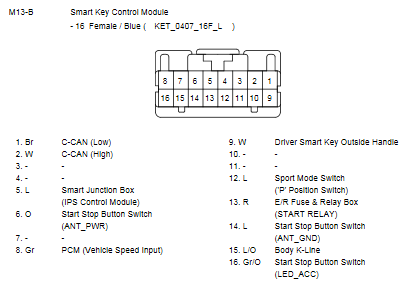

Fig 1: Smart Key Control Module Connector End View (M13-B)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
