A/C Control Module (Manual) Connector End View (M04)

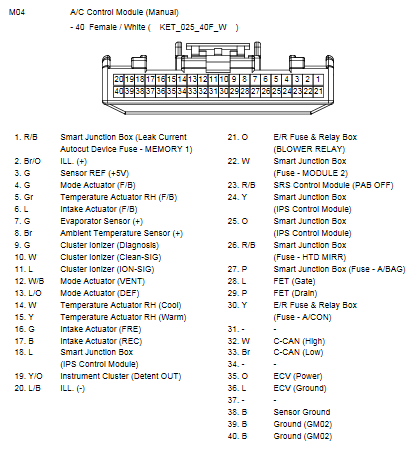

Fig 1: A/C Control Module (Manual) Connector End View (M04)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
