SRS Control Module Connector End View (M10)

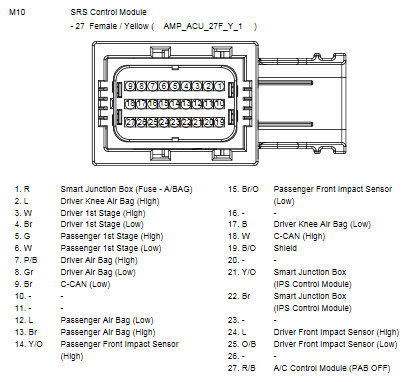

Fig 1: SRS Control Module Connector End View (M10)
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
