Interior D

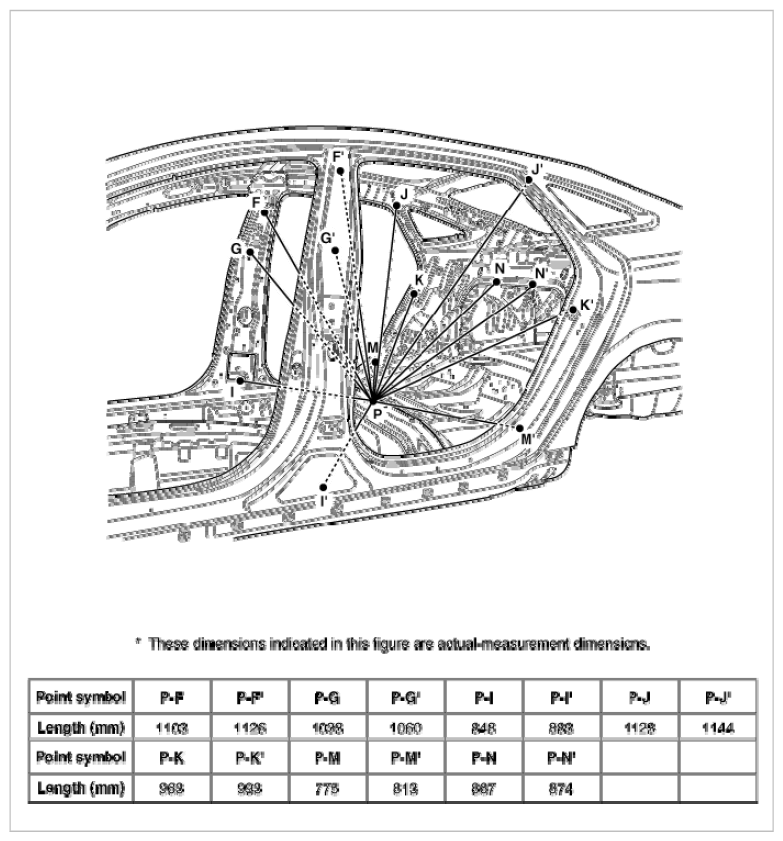

Fig 1: Identifying Interior D Dimensions
G08810509Courtesy of HYUNDAI MOTOR AMERICA

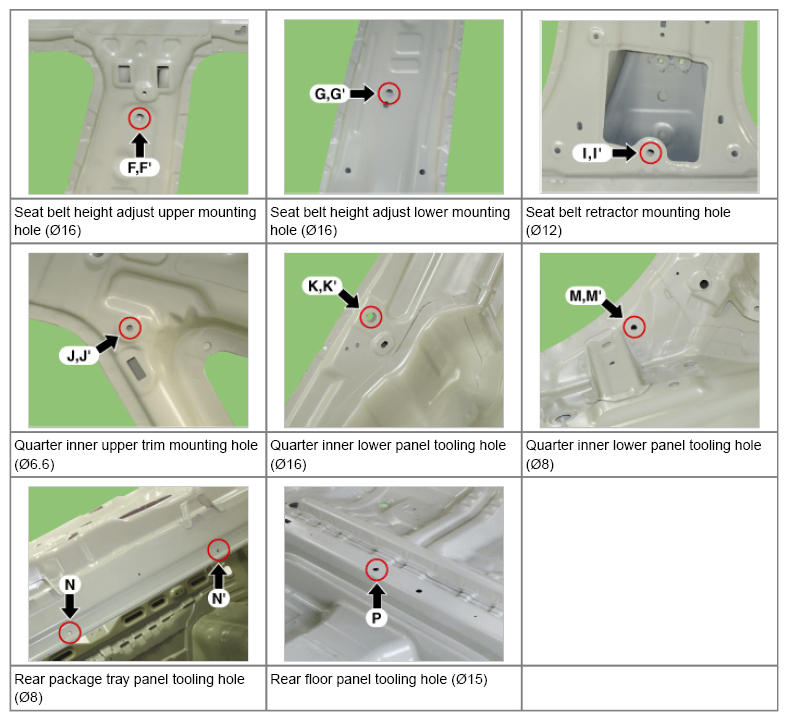

Fig 2: Locating Mounting Holes On Interior D
G08810510Courtesy of HYUNDAI MOTOR AMERICA
