Components And Components Location: Components

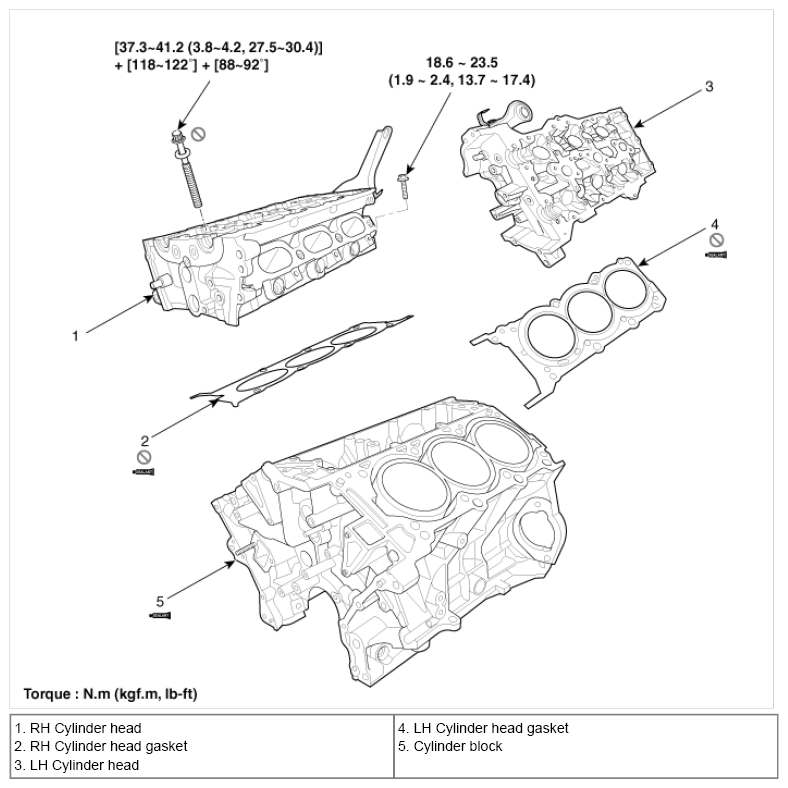

Fig 1: Cylinder Head And Related Replacement Components With Torque Specifications (1 Of 2)
G08809227Courtesy of HYUNDAI MOTOR AMERICA

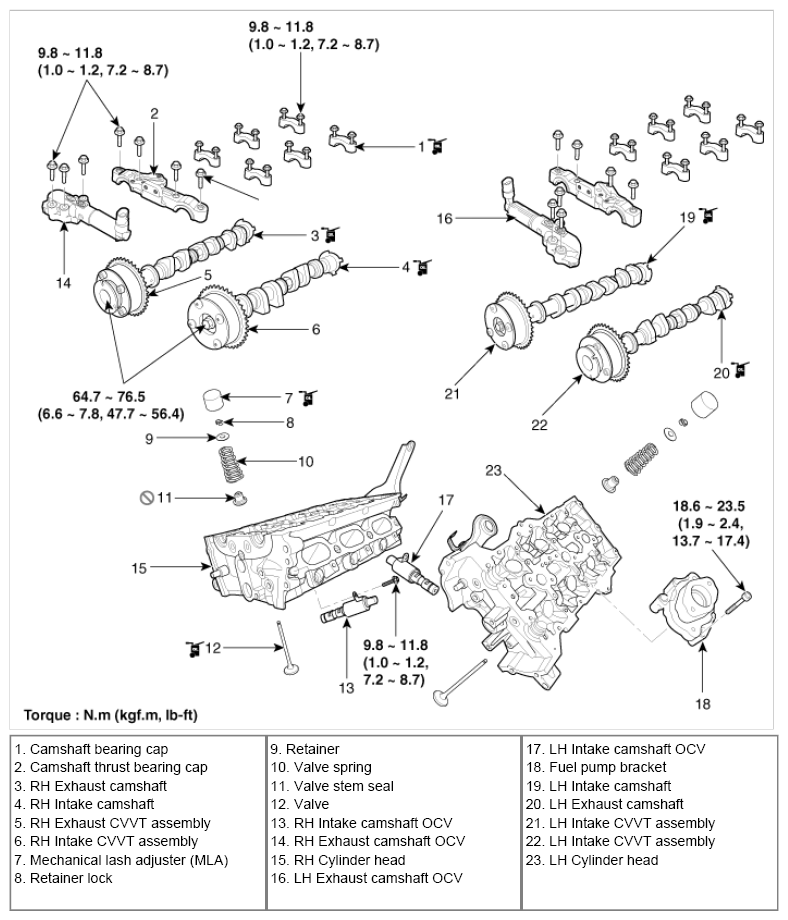

Fig 2: Cylinder Head And Related Replacement Components With Torque Specifications (1 Of 2)
G08809228Courtesy of HYUNDAI MOTOR AMERICA
