Circuit Diagram: (M/T)

2013

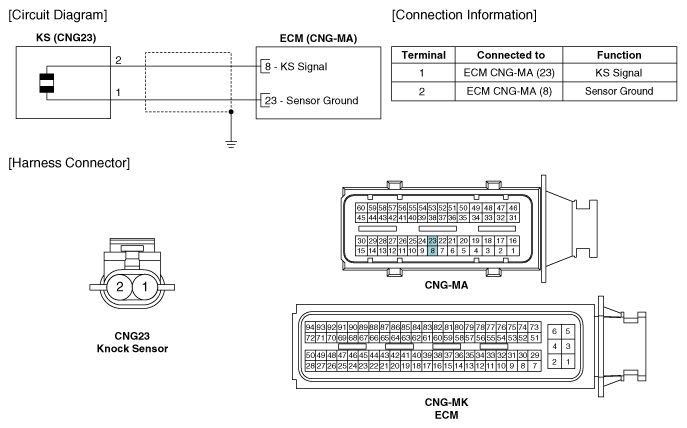

Fig 1: Knock Sensor Circuit Diagram (M/T)
G10234883Courtesy of HYUNDAI MOTOR AMERICA

2014

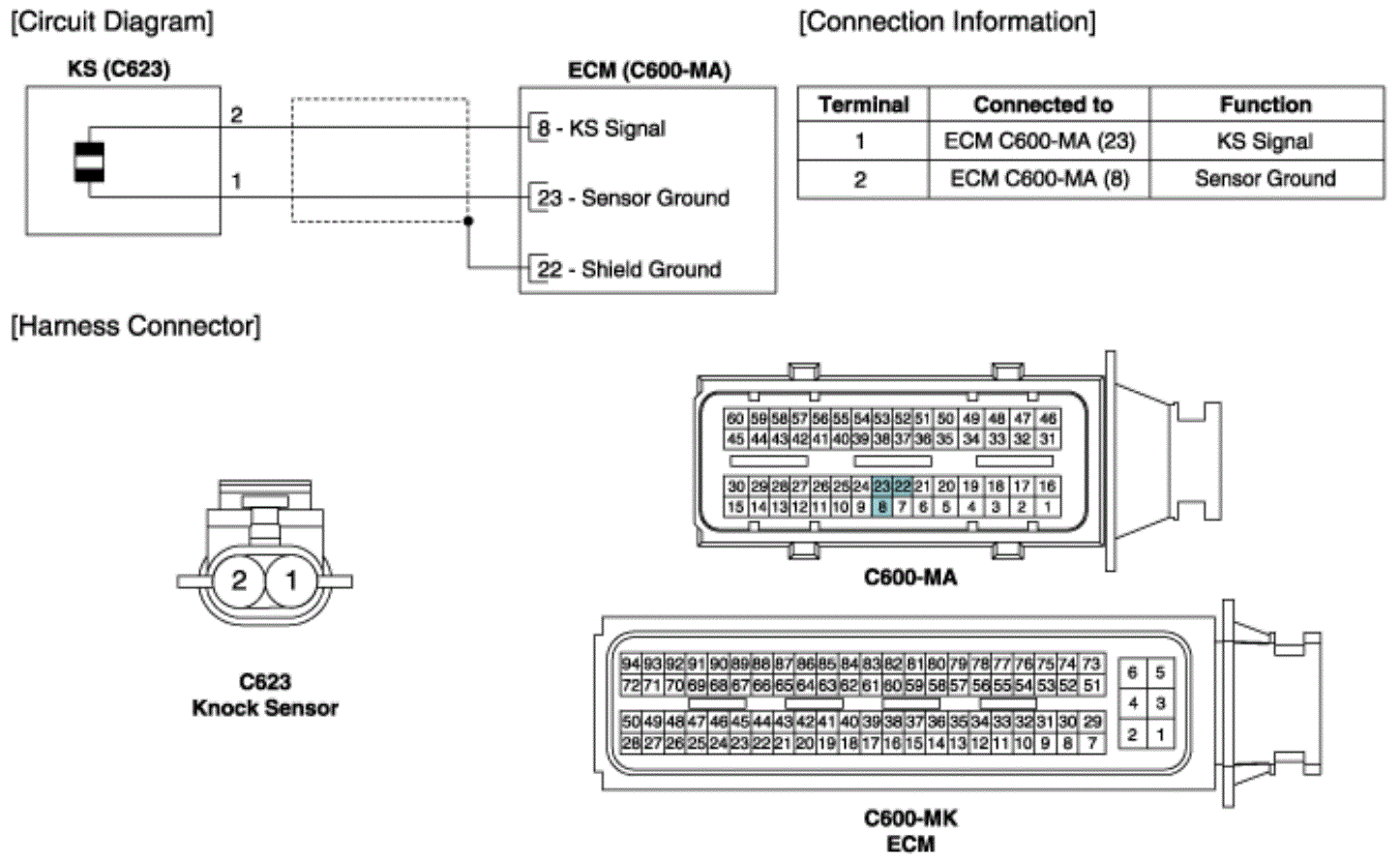

Fig 2: Knock Sensor Circuit Diagram (M/T)
G00559842Courtesy of HYUNDAI MOTOR AMERICA
