Automatic Transaxle Hydraulic System
>>
Valve Body
>>
Components and Components Location
>>
Components Location
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Components Location

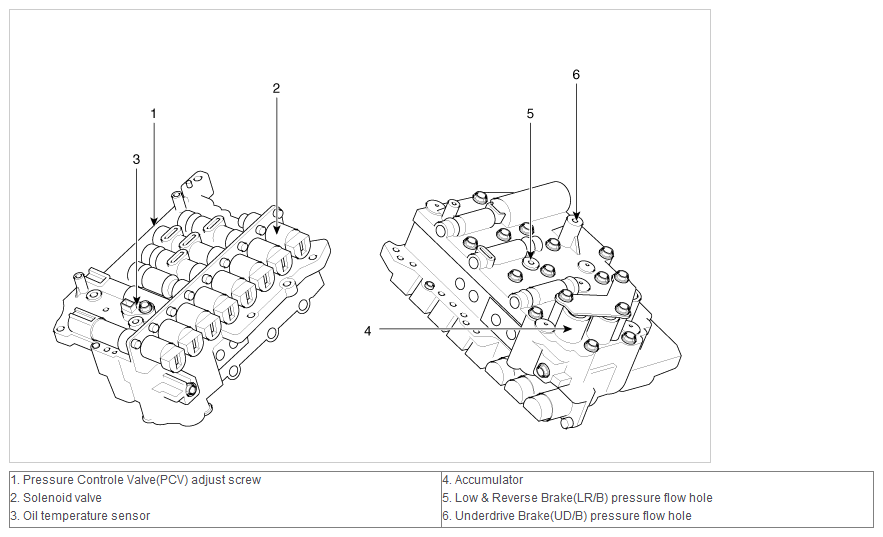

Fig 1: Automatic Transaxle Valve Body Components And Locations
Courtesy of HYUNDAI MOTOR AMERICA
