Smart Key Code Saving

Connect the DLC cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.

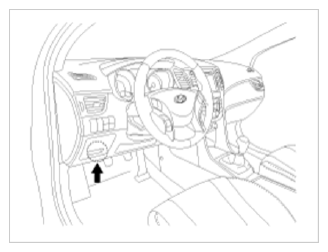

Fig 1: Locating Smart Key Code
Courtesy of HYUNDAI MOTOR AMERICA
Select the vehicle model and then do "Smart key code saving".

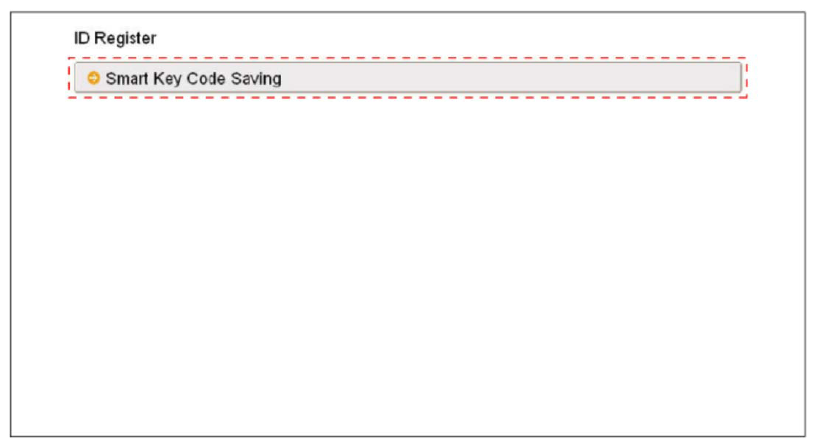

Fig 2: Display - Smart Key Code Saving Screen
Courtesy of HYUNDAI MOTOR AMERICA
After selecting "Smart key teaching" menu, push "Enter" key, then the screen will be shown as below.

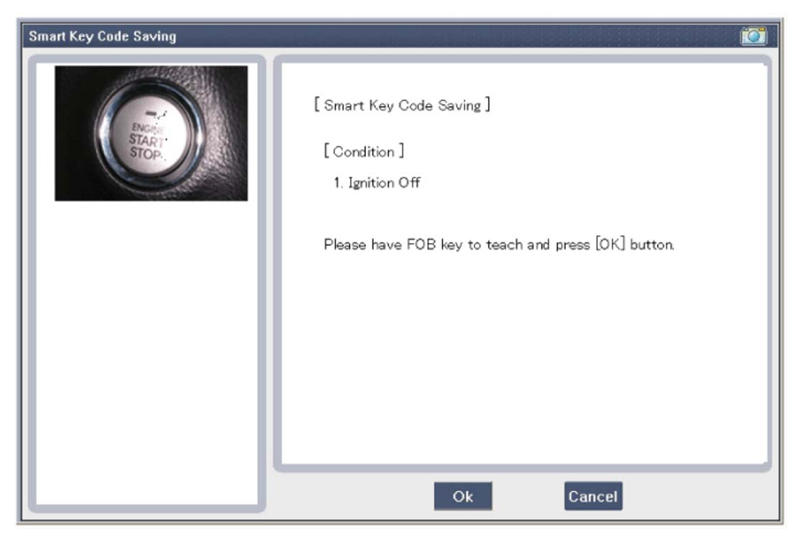

Fig 3: Display - Smart Key Code Saving Screen (Ignition Off)
Courtesy of HYUNDAI MOTOR AMERICA
After pushing the SSB with the teaching key, press "OK" button.
Input the "Pin code" for first key teaching.

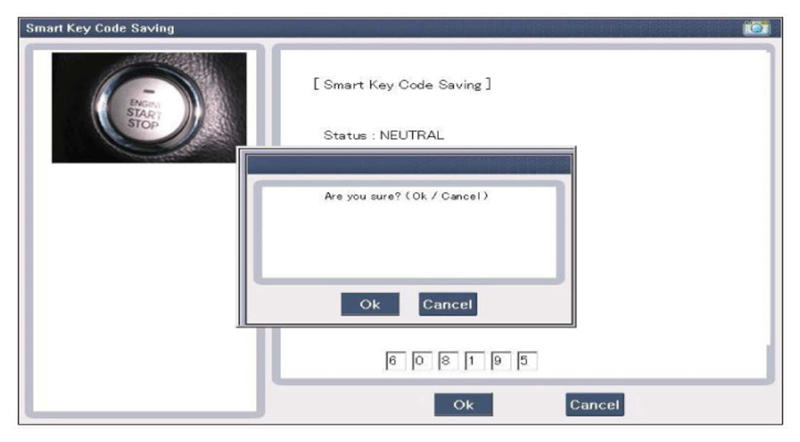

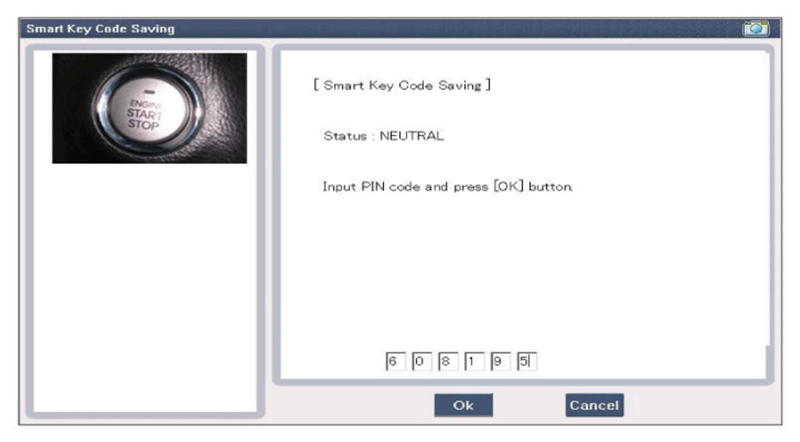

Fig 4: Display - Smart Key Code Saving Screen (Neutral)
Courtesy of HYUNDAI MOTOR AMERICA

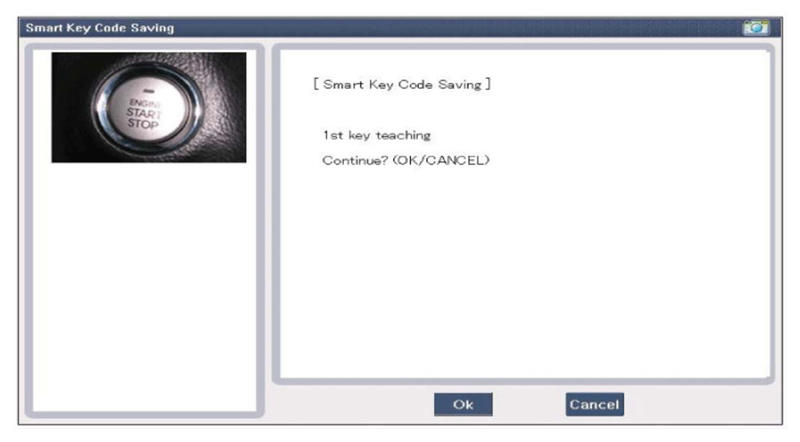

Fig 5: Display - Smart Key Code Saving - OK Button Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "First key teaching completed".

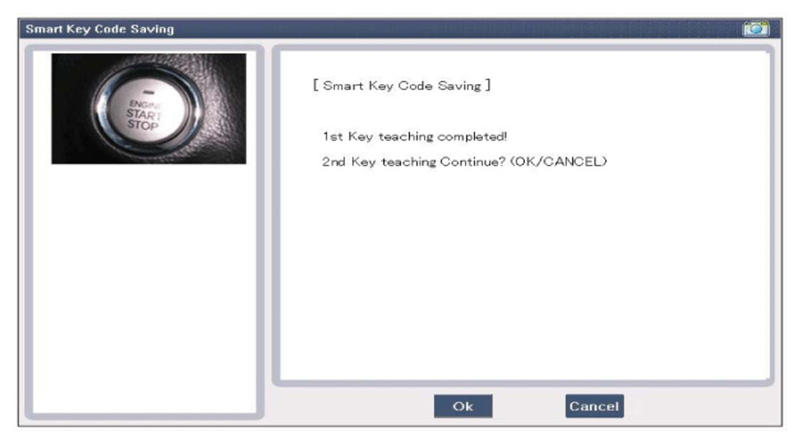

Fig 6: Display - Smart Key Code Saving - First Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

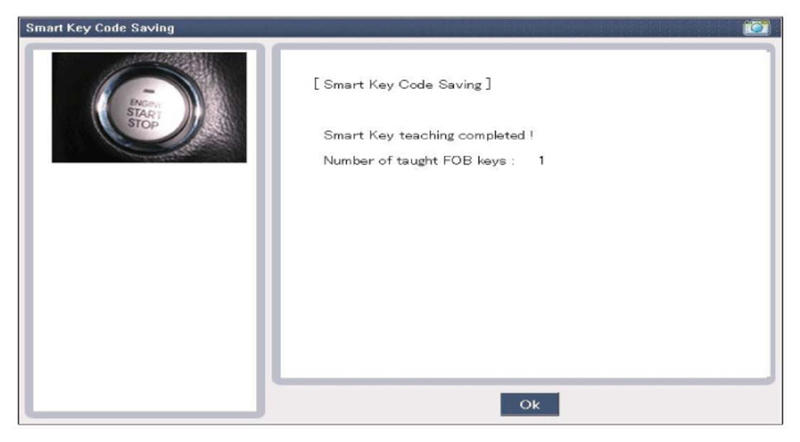

Fig 7: Display - Smart Key Code Saving - First Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Input the "Pin code" for second key teaching.

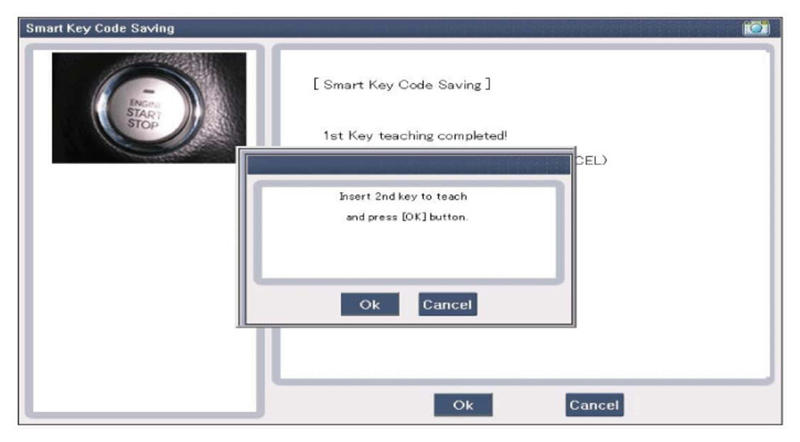

Fig 8: Display - Smart Key Code Saving - Second Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA

Fig 9: Display - Smart Key Code Saving - OK Button Screen
Courtesy of HYUNDAI MOTOR AMERICA
Confirm the message "Second key teaching completed".

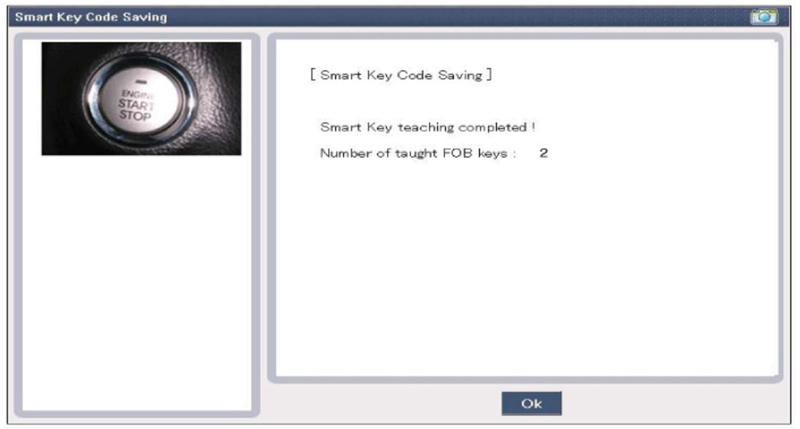

Fig 10: Display - Second Key Teaching Completed Screen
Courtesy of HYUNDAI MOTOR AMERICA
Then the screen will be shown as above when key teaching process is completed.
