Repair procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad center garnish (A).

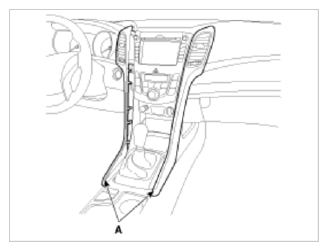

    Fig 1: Identifying Crash Pad Center Garnish
    G09887842Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the crash pad lower panel (A).

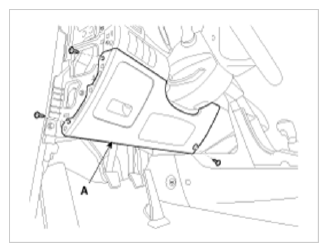

    Fig 2: Identifying Crash Pad Lower Panel
    G09887843Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the steering column shroud lower and upper panel (A) after loosening 3 screws.

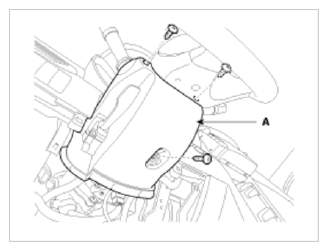

    Fig 3: Identifying Steering Column Shroud Lower Panel
    G09887844Courtesy of HYUNDAI MOTOR AMERICA

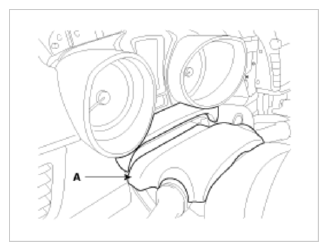

    Fig 4: Identifying Steering Column Shroud Upper Panel
    G09887845Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the driver crash pad panel (A).

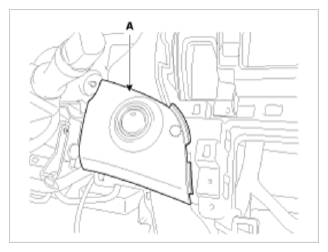

    Fig 5: Identifying Driver Crash Pad Panel
    G09887846Courtesy of HYUNDAI MOTOR AMERICA
  6. Disconnect the start/stop button connector (A).

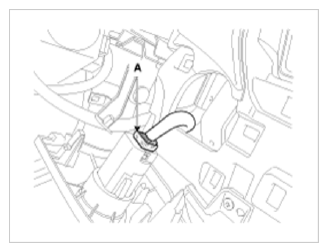

    Fig 6: Identifying Start/Stop Button Connector
    G09887847Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the start/stop button (A) after pushing the hook (B).

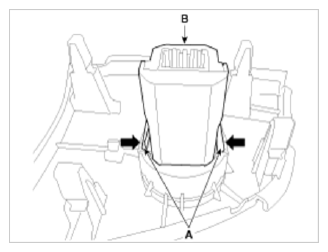

    Fig 7: Locating Start/Stop Button
    G09887848Courtesy of HYUNDAI MOTOR AMERICA
