Component Inspection
- Ignition "OFF".
- Disconnect IATS connector.

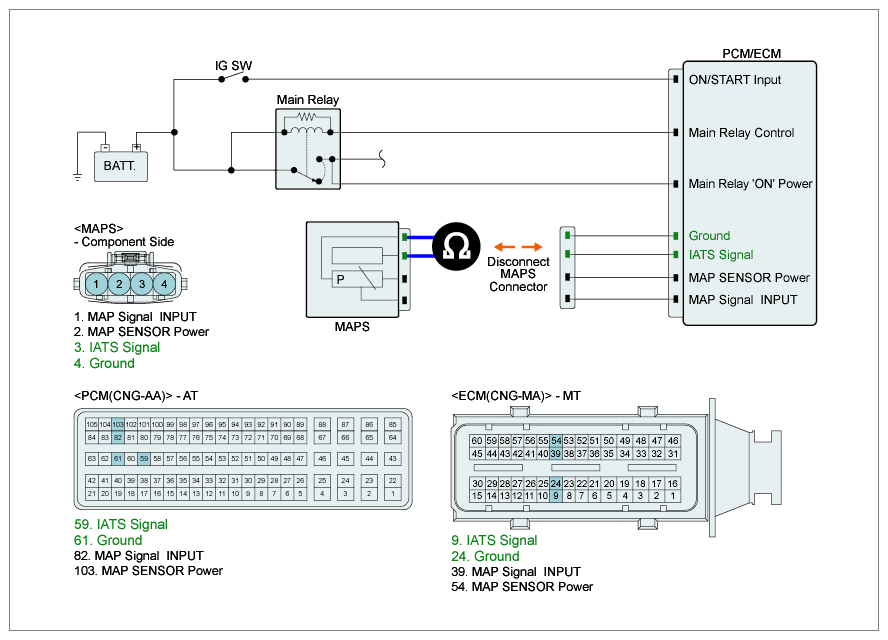

- Measure the resistance between signal terminal and ground terminal of the sensor connector (Component side).RESISTANCE AND TEMPERATURE SPECIFICATION
Temp. (°C) Temp. (°F) Resistance (kΩ) -10 14 8.5 ~ 9.7 0 32 5.4 ~ 6.1 10 50 3.5 ~ 3.9 20 68 2.3 ~ 2.5 30 86 1.6 ~ 1.7 80 176 Approx. 0.3 - Is resistance within the specification?
YES
- Check for poor connection between PCM/ECM and component: backed out terminal, improper mating, broken locks or poor terminal to wire connection. Repair as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
NO
- Check IATS for contamination, deterioration, or damage. Substitute with a known-good IATS and check for proper operation. If the problem is corrected, replace IATS and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
