Elantra GT Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 2)
>>
DTC P0122: Throttle/Pedal Position Sensor/Switch 'A' Circuit Low Input
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

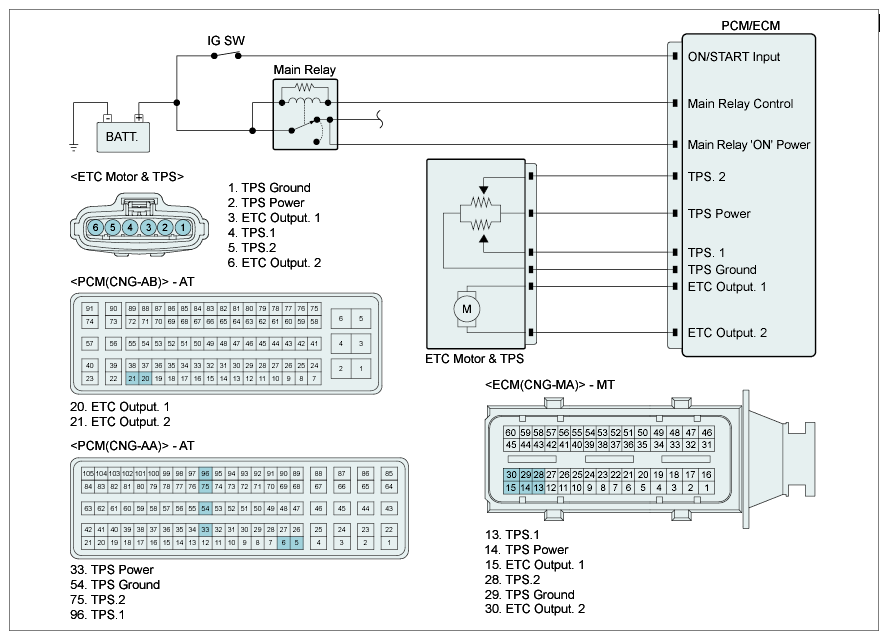

Fig 1: PCM/ECM - Circuit Diagram
