Elantra GT Automatic Trans
>>
Repair and Diagnosis
>>
Engine Performance
>>
System
>>
Engine Control System Diagnosis (1 Of 2)
>>
DTC P0135: O2 Sensor Heater Circuit (Bank 1/Sensor 1)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

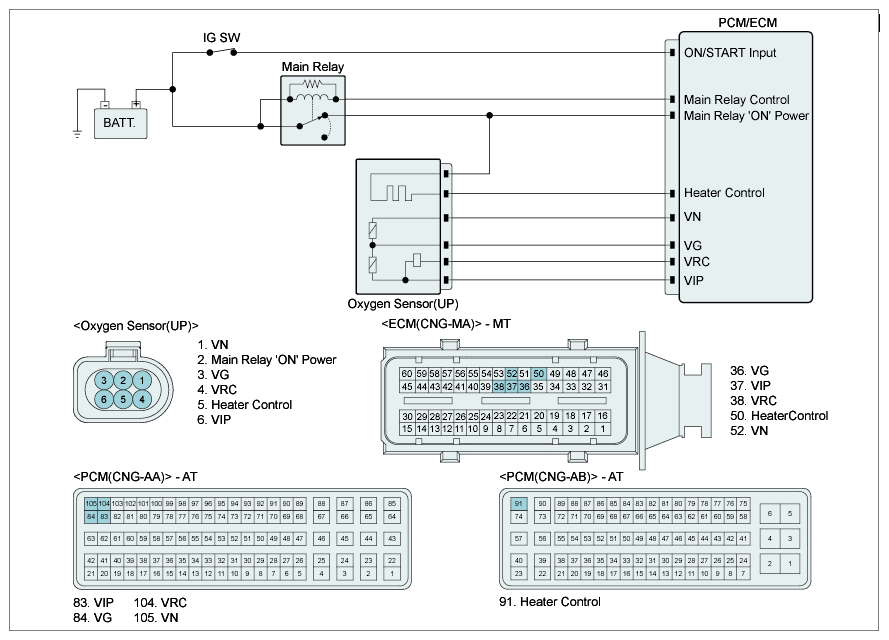

Diagnostic Circuit Diagram
Fig 1: PCM/ECM - Circuit Diagram
