Engine Control System Diagnosis (1 Of 2)
>>
DTC P0140: O2 Sensor Circuit No Activity Detected (Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram

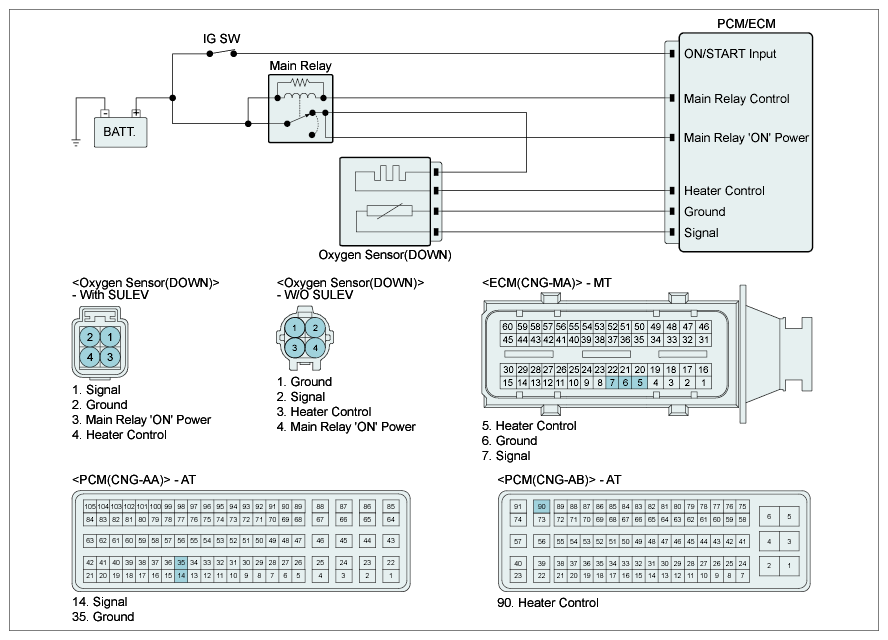

Fig 1: PCM/ECM - Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
