Repair procedures: Removal

Remove the following components:
1. Engine cover.
  (Refer to "ENGINE COVER ")
2. Air cleaner assembly and air duct.
  (Refer to "AIR CLEANER ")
3. Battery and battery tray.
  (Refer to "BATTERY ")
Set shift lever to N position.
Separate the control cable from the control shaft after remove the pin (A) and washer (B).

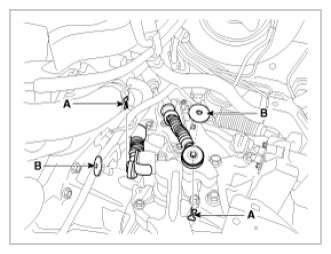

Fig 1: Identifying Control Cable, Control Shaft, Pin And Washer
Courtesy of HYUNDAI MOTOR AMERICA
Remove the control shaft assembly after loosen the bolts.
Tightening torque:

19.6 ~ 26.5 N.m (2.0 ~ 2.7 kgf.m, 14.5 ~ 19.5 lb-ft)

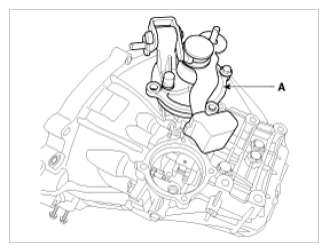

Fig 2: Identifying Control Shaft Assembly
Courtesy of HYUNDAI MOTOR AMERICA
