Transaxle Control Module (TCM)

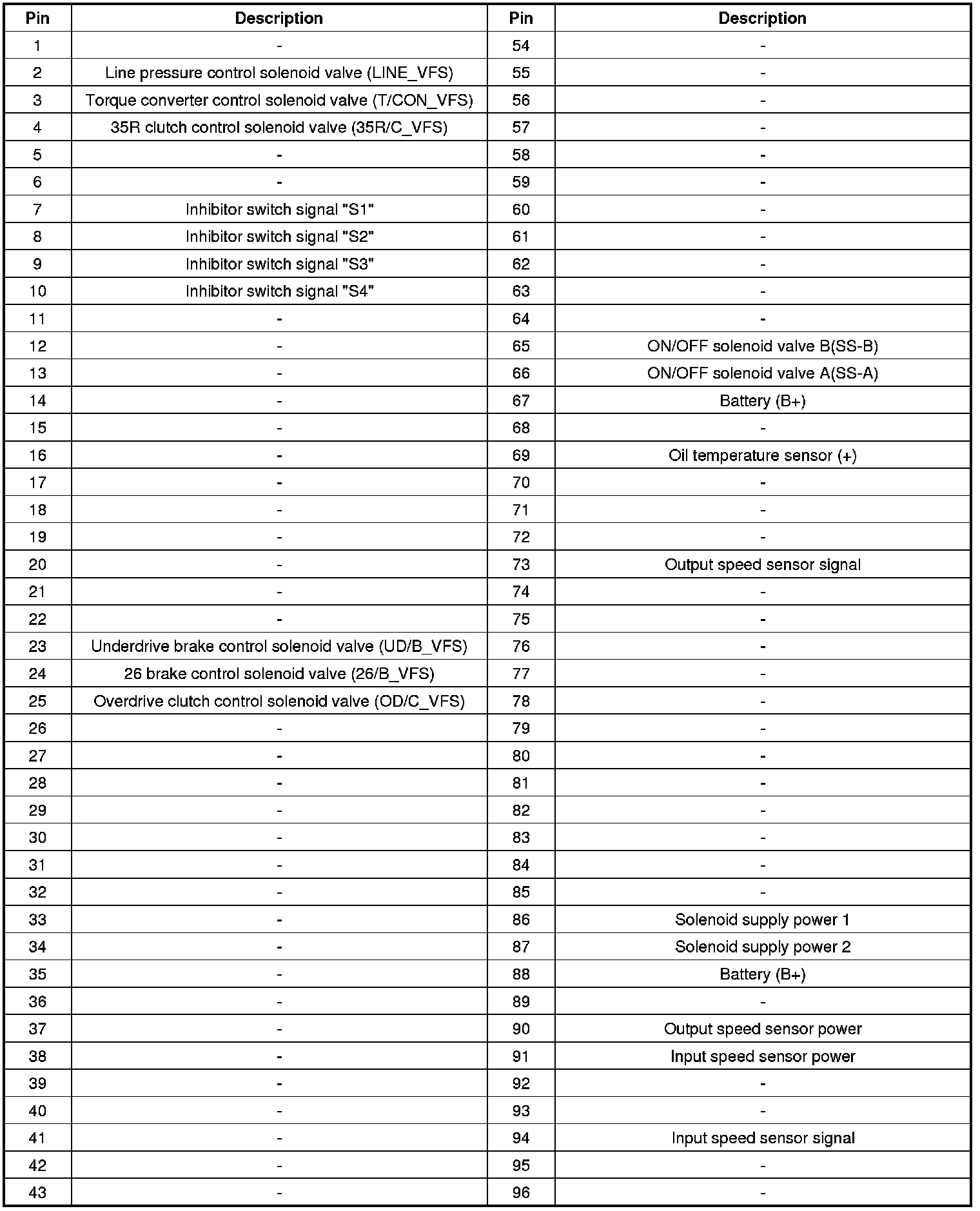

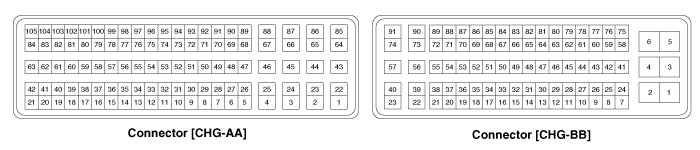

1. TCM Connector and Terminal Function

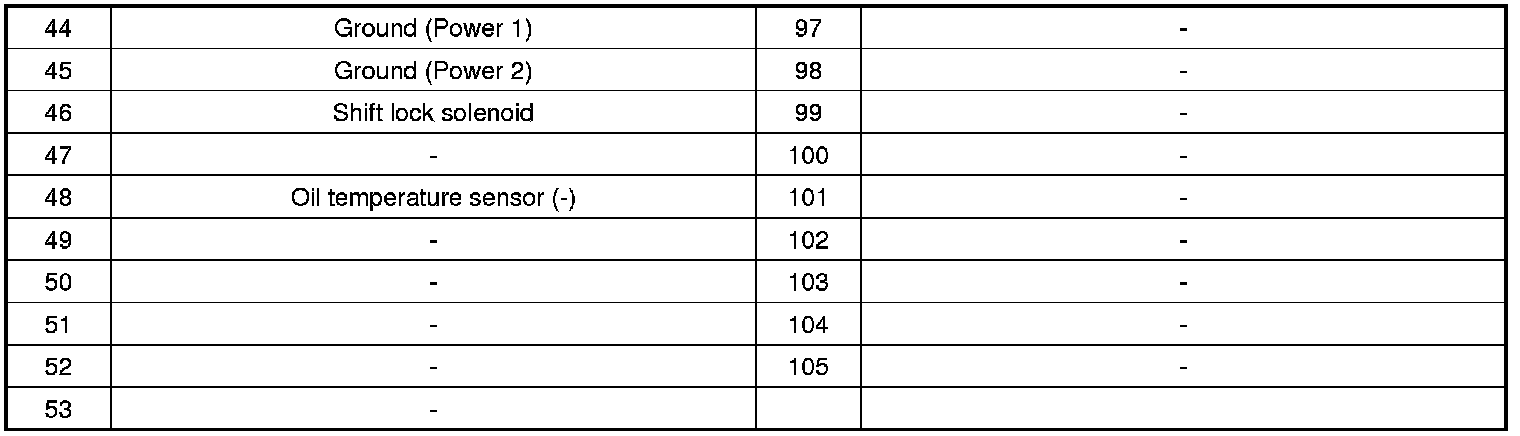

2. TCM Terminal Function

Connector [CHG-AA]

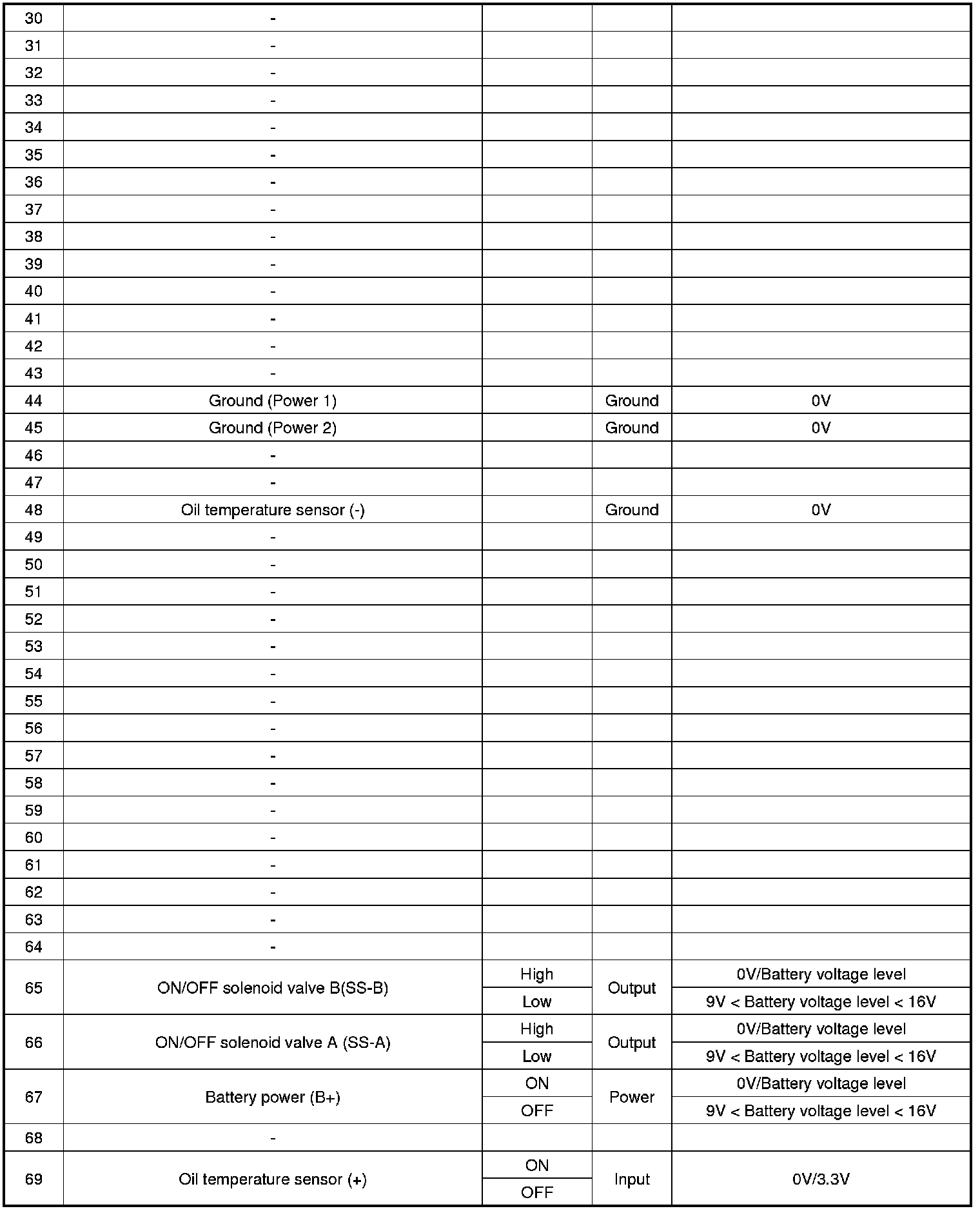

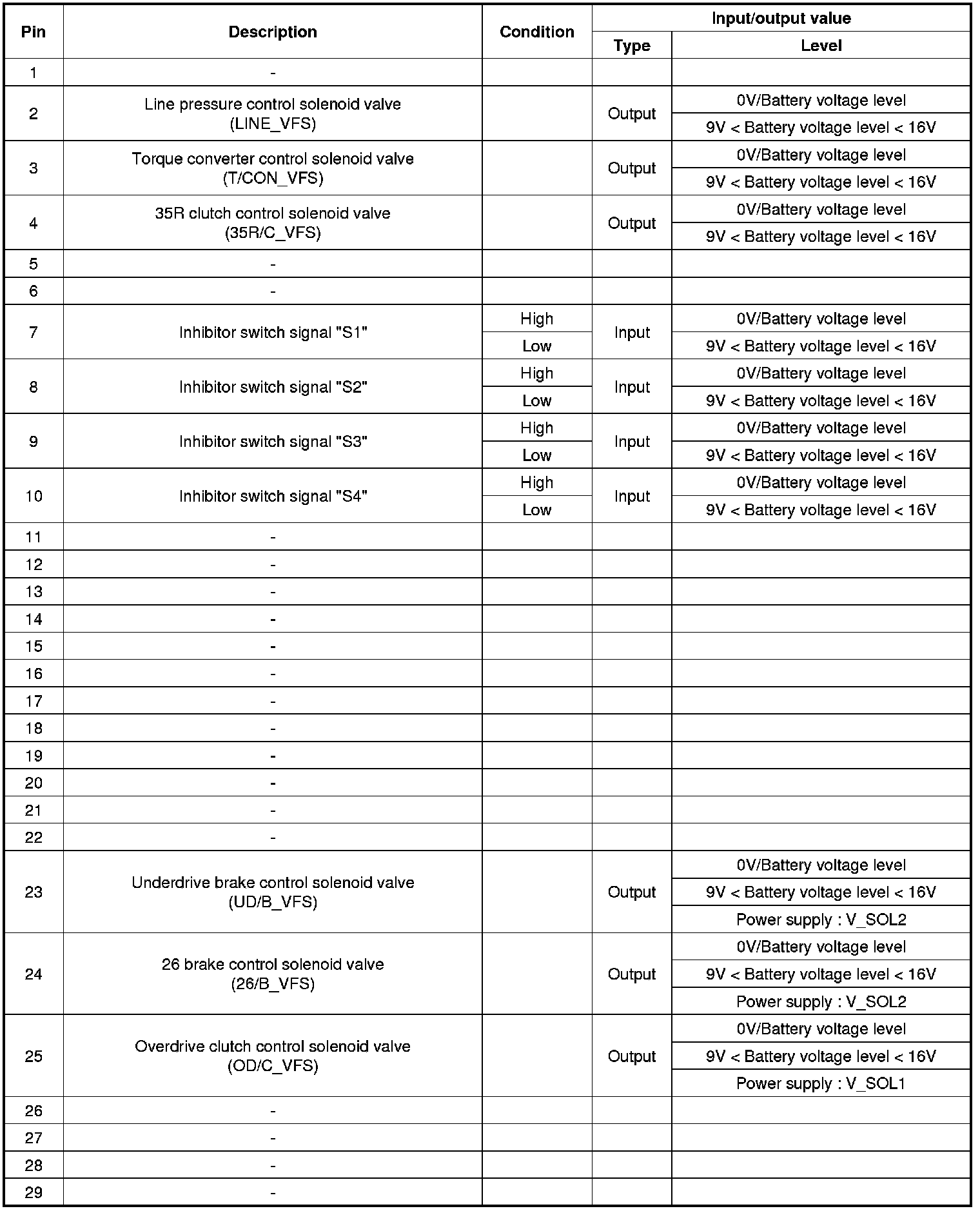

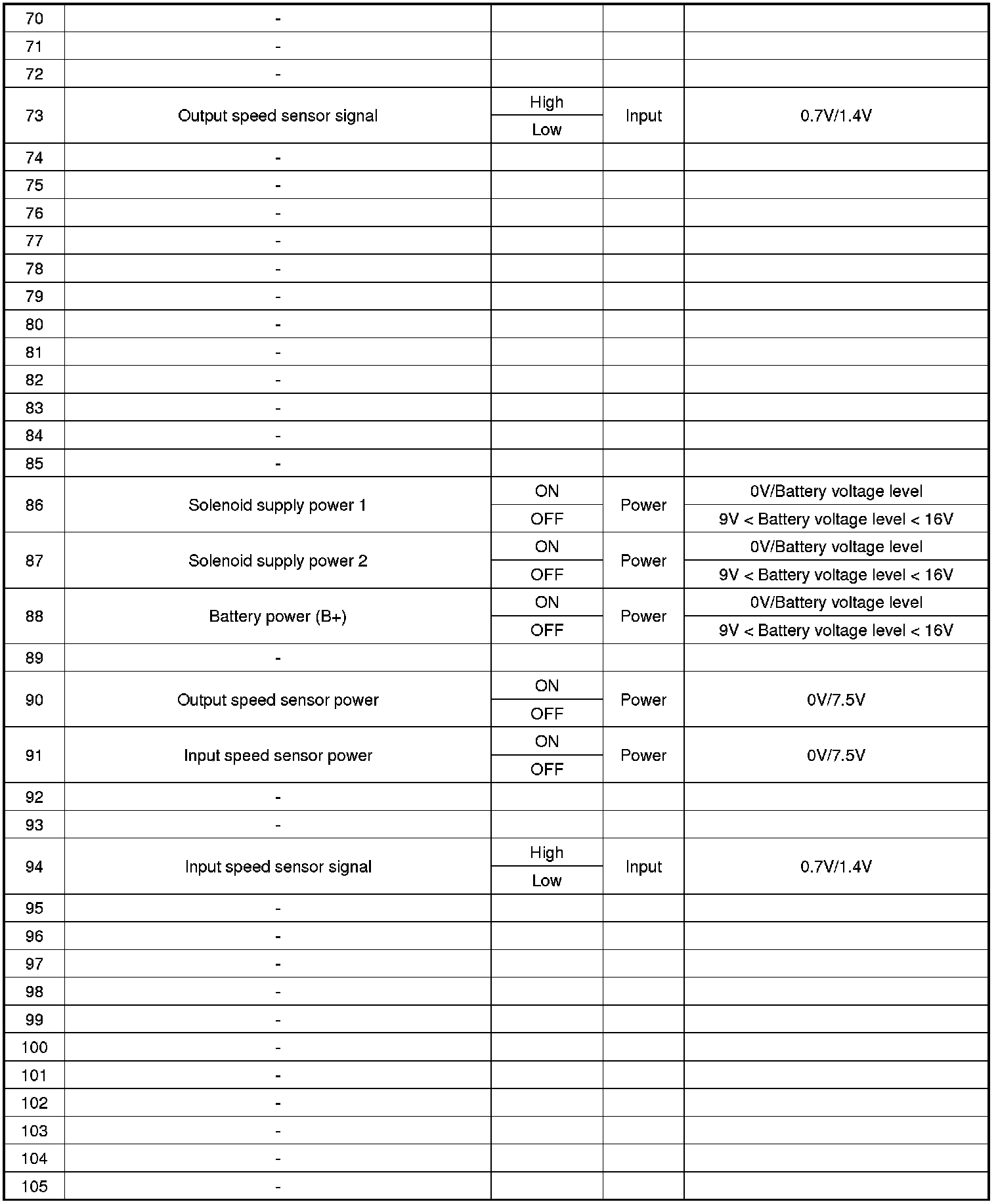

TCM Terminal Input/ Output Signal

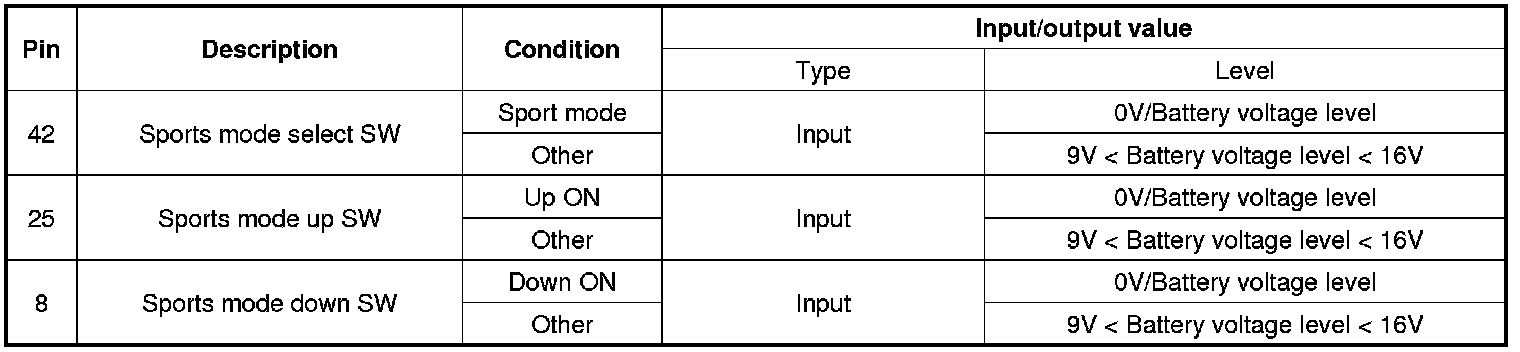

Connector [CHG-AA]













Connector [CHG-BB]

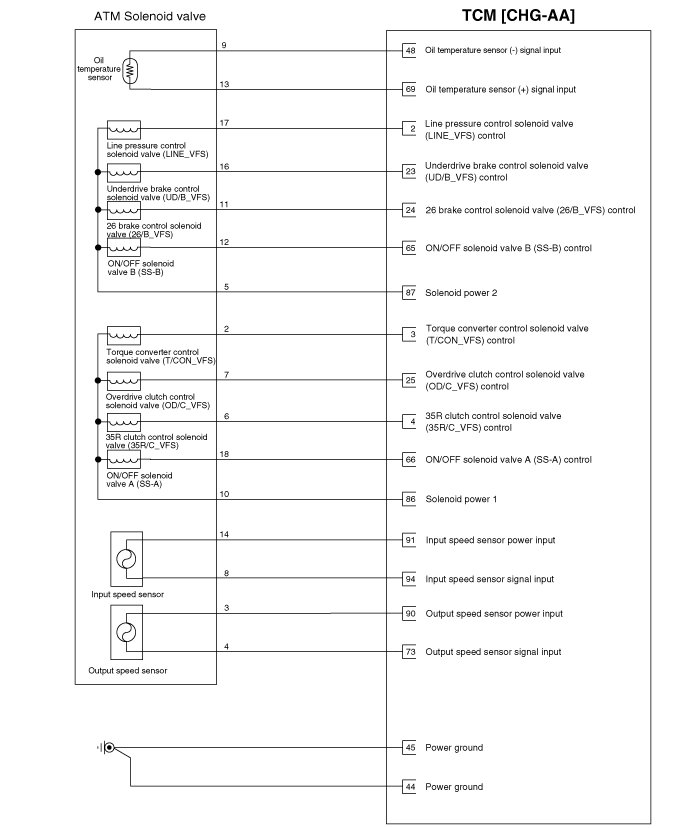

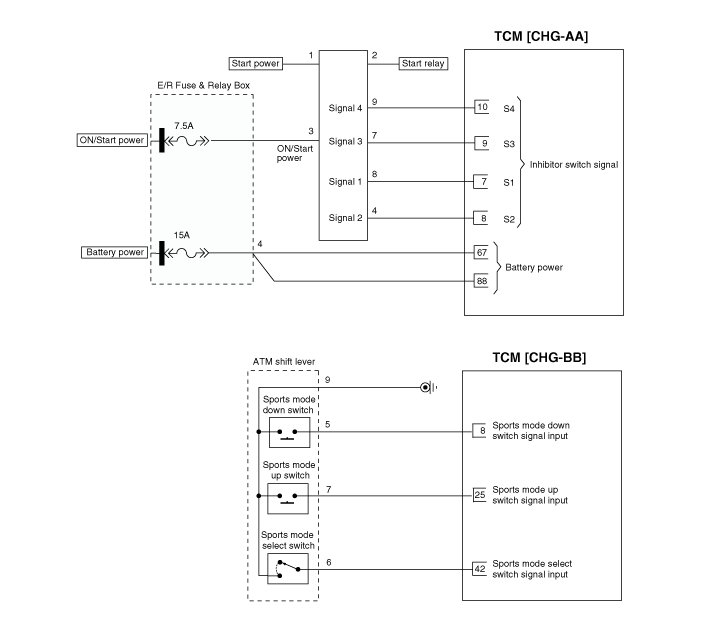

Circuit Diagram
