Data Flow

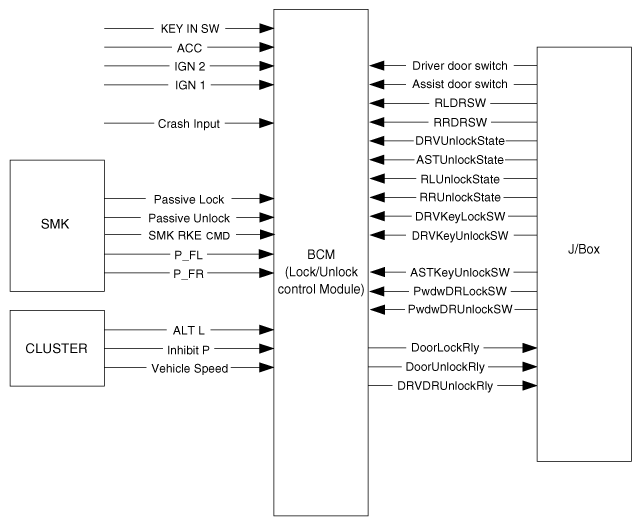

Fig 1: Door Lock/Unlock Control Communication Diagram
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
