Engine Control System Diagnosis - (1 Of 3)
>>
DTC P0136: O2 Sensor Circuit (Bank 1/Sensor 2)
>>
General Information
>>
Diagnostic Circuit Diagram 2013
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Diagnostic Circuit Diagram 2013

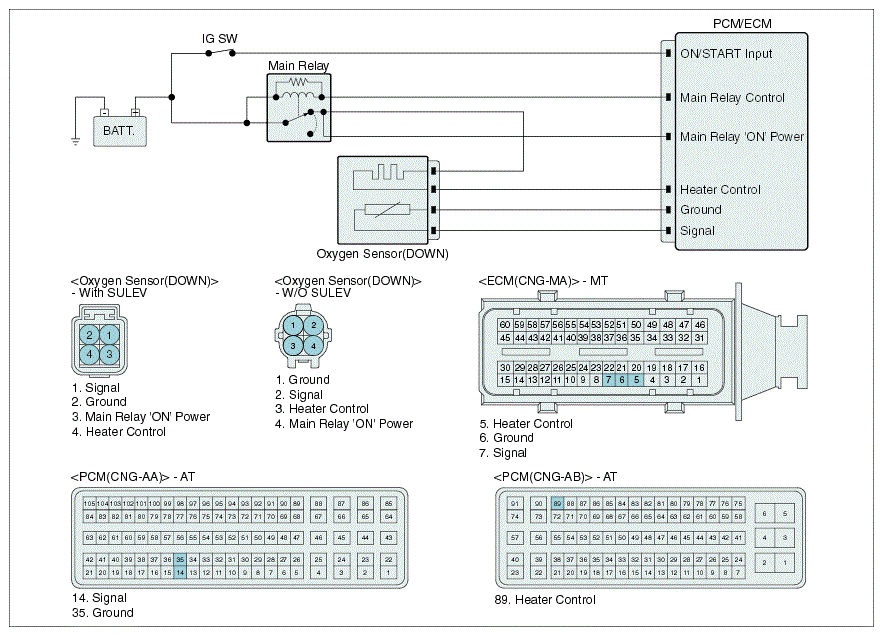

Fig 1: Oxygen Sensor (DOWN) Circuit Diagram
