Signal Circuit Inspection

Ignition "ON" & Engine "OFF".
Measure voltage between signal terminal of HO2S (B1S2) harness connector and chassis ground.
Specification: Approx. 0.4~0.5V

2013

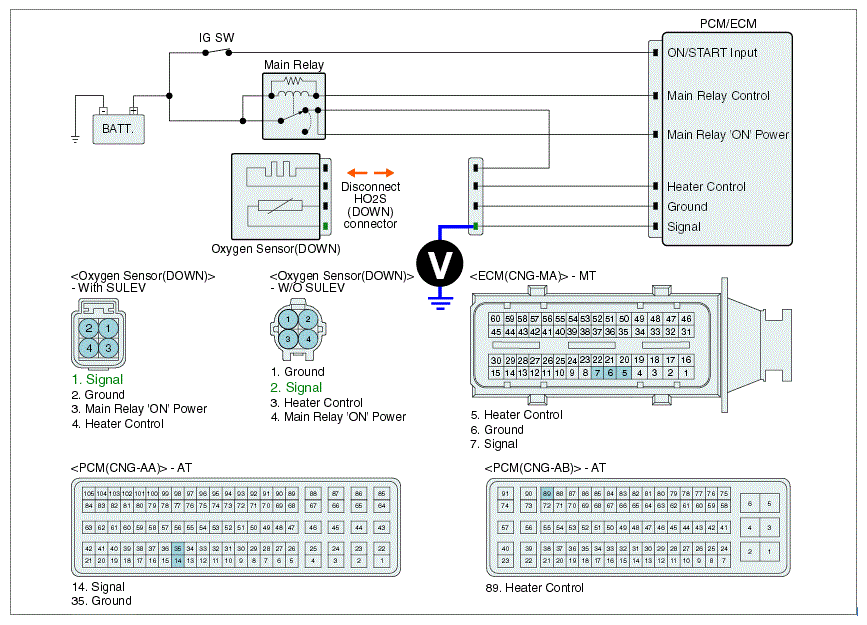

Fig 1: Measuring Voltage Between Signal Terminal Of HO2S (B1S2) Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA

2014

Refer to appropriate SYSTEM WIRING DIAGRAM article
Is voltage within the specification?
YES
- Go to next step as indicated below.
NO
- Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE: HO2S must have a clean air reference to function properly. The air is obtained by way of the sensor wire(s). Do not attempt to repair the wire(s), connector, or the terminals.
