Control Circuit Inspection

Ignition "OFF".
Disconnect HO2S connector.
Ignition "ON", Engine "OFF".
Measure voltage between VIP terminal of the sensor harness connector and chassis ground.
Specification: Approx. 2~3V
Measure resistance between VIP terminal and other terminals of the HO2S harness connector.
Specification: Infinite

2013

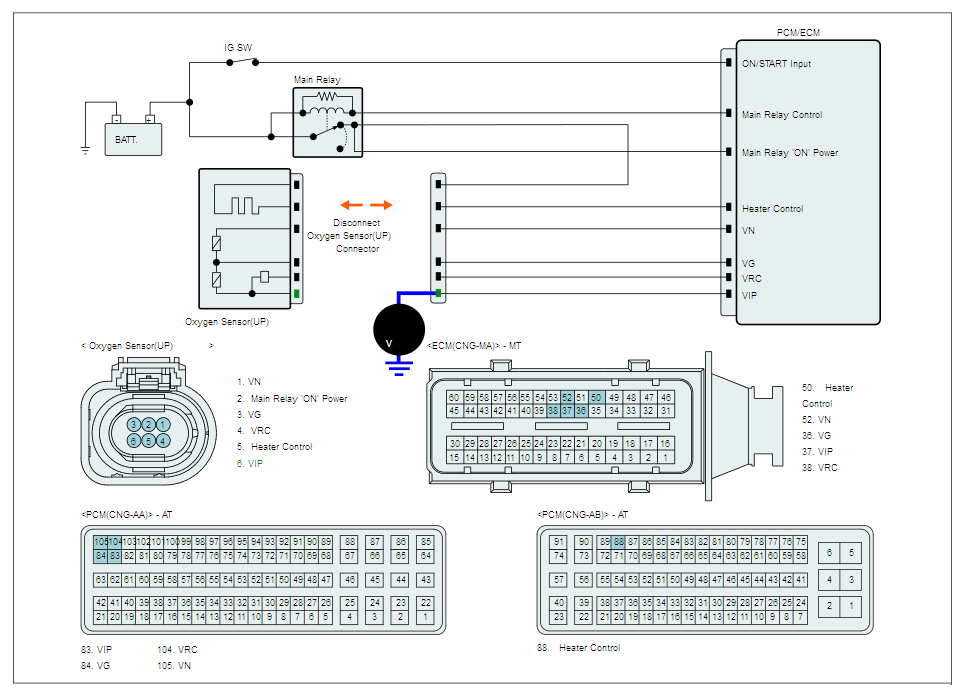

Fig 1: Measuring Voltage Between VIP Terminal Of Sensor Harness Connector And Chassis Ground
Courtesy of HYUNDAI MOTOR AMERICA

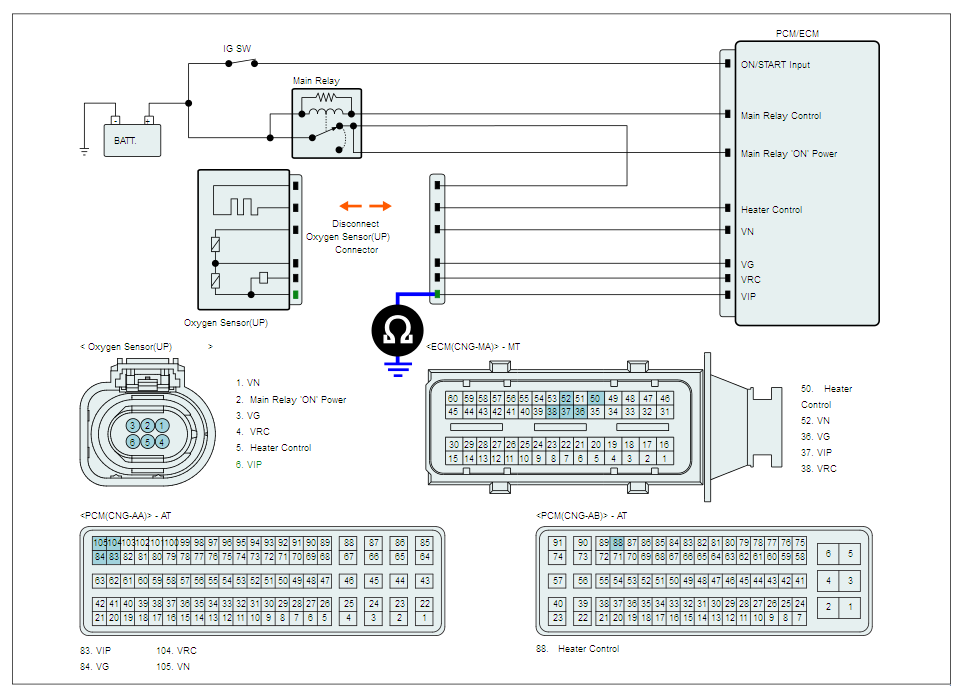

Fig 2: Measuring Resistance Between VIP Terminal And Other Terminals Of HO2S Harness Connector
Courtesy of HYUNDAI MOTOR AMERICA

2014

Refer to appropriate SYSTEM WIRING DIAGRAM article
Is HO2S display near the specification?
YES
- Go to next step as indicated below.
NO
- Repair open or short to ground in signal circuit and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NOTE: HO2S must have a clean air reference to function properly. The air is obtained by way of the sensor wire(s). Do not attempt to repair the wire(s), connector, or the terminals.
